Sensor, Camshaft Position: Removal: 2.4L

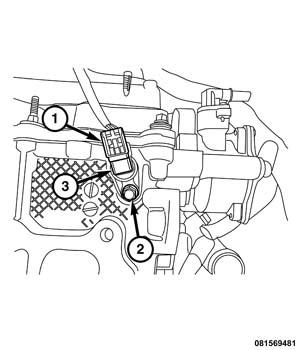

Fig 1: Connector, Mounting Bolt & Camshaft Position Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect negative battery cable.
2. Disconnect electrical connector at sensor (1).
3. Remove mounting bolt (2).
   Fig 2: Cam Sensor

   Courtesy of CHRYSLER GROUP, LLC
4. Remove the exhaust cam sensor (3).
