Sending Unit And Sensor, Fuel Level: Description: Description

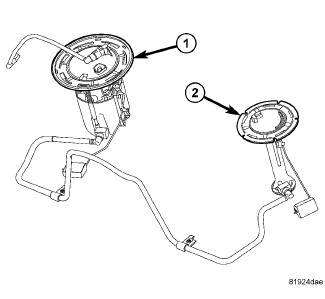

Diesel vehicles are equipped with a saddle fuel tank configurations which have a main (1) and auxiliary (2) fuel level sending units.
The main fuel level sending unit located on the main fuel pump reservoir (1) and is serviceable.
The auxiliary fuel level sending unit (2) is integrated with the auxiliary fuel pump module. The auxiliary fuel pump module and the fuel level sending unit is serviced as an assembly.
