Throttle Body: Installation: 3.2L

Fig 1: Throttle Body-To-Intake Manifold Seal

Courtesy of CHRYSLER GROUP, LLC

Check the condition of the throttle body-to-intake manifold seal (1). The seal can be reused if not damaged.
Clean the mating surfaces of the throttle body and intake manifold.

Fig 2: Electrical Connector, Electronic Throttle Control (ETC), Clip & Mounting Bolts
Courtesy of CHRYSLER GROUP, LLC
Position the throttle body (2) to the intake manifold.
Install the throttle body mounting bolts (3) and tighten in a crisscross pattern sequence to the proper specification. Refer to RESONATOR, AIR CLEANER, REMOVAL .
Connect the electrical connector (1) to the Electronic Throttle Control (ETC) (2) and secure the ETC harness to the clip (4) on the throttle body.

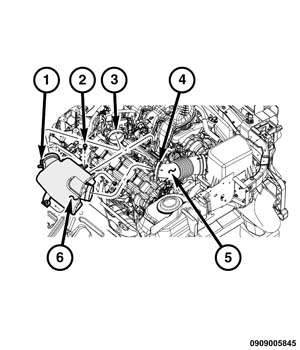

Fig 3: IAT Sensor Connector, Throttle Body & Air Inlet Hose Housing
Courtesy of CHRYSLER GROUP, LLC
Position the air inlet hose (5) onto the resonator housing (6). Hand tighten the clamp (4).
Secure the air inlet hose assembly retaining grommet onto the ball stud.
Hand tighten the clamp (3) at the throttle body.
Connect the Inlet Air Temperature (IAT) sensor electrical connector (1).

Fig 4: Engine Cover & Ball Studs
Courtesy of CHRYSLER GROUP, LLC
Position the engine cover (1) and secure the retaining grommets onto the ball studs.

Fig 5: Battery & Cables
Courtesy of CHRYSLER GROUP, LLC
Connect the negative battery cable (3). Tighten the nut to the proper specification. Refer to SPECIFICATIONS .
