Bottle, Pressurized Coolant: Installation: Diesel

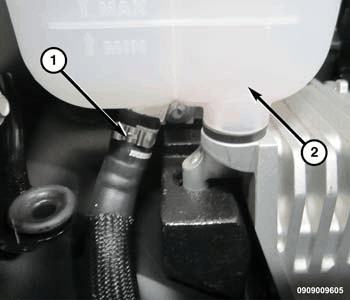

Fig 1: Coolant Bottle & Lower Hose

Courtesy of CHRYSLER GROUP, LLC

1. Install the lower coolant hose (1) to pressurized coolant bottle (2).

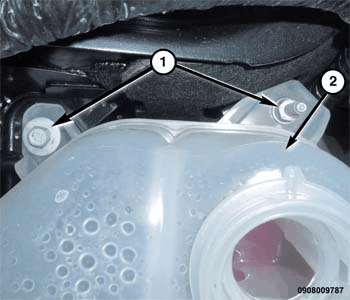

   Fig 2: Coolant Bottle & Fasteners

   Courtesy of CHRYSLER GROUP, LLC
2. Install the pressurized coolant bottle (2).
   • Tighten bolt (1) to 8 N.m (70 in. lbs.).
   • Tighten nut to 8 N.m (70 in. lbs.).

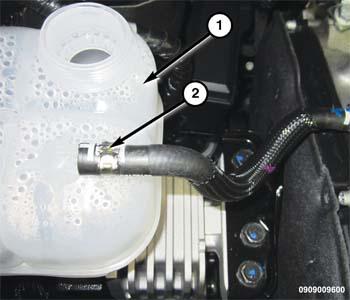

   Fig 3: Coolant Bottle & Hose

   Courtesy of CHRYSLER GROUP, LLC
3. Install the coolant return hose (2) to top of pressurized coolant bottle (1).
4. Fill the cooling system. Refer to STANDARD PROCEDURE .
5. Connect the negative battery cable.
