Exhaust Temperature Sensor 1/2

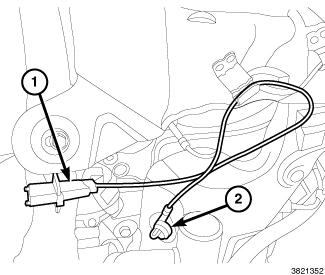

Fig 1: Downstream Exhaust Temperature Sensor & Connector

Courtesy of CHRYSLER GROUP, LLC

Install the downstream exhaust temperature sensor 1/2 (2) and tighten to 45 N.m (33 ft. lbs.).
Attach the downstream exhaust temperature sensor 1/2 wire harness connector (1) to bracket.
Connect the downstream exhaust temperature sensor 1/2 wire harness connector.

Fig 2: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable.
