Exhaust Temperature Sensor 1/1

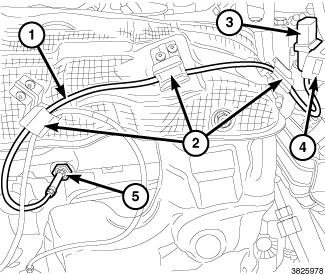

Fig 1: Upstream Exhaust Temperature Sensor, Wire, Bracket & Connector

Courtesy of CHRYSLER GROUP, LLC

Install the upstream exhaust temperature sensor 1/1 (5) and tighten to 45 N.m (33 ft. lbs.).
Attach the upstream exhaust temperature sensor 1/1 wire harness connector (3) to bracket (4).
Attach the upstream exhaust temperature sensor 1/1 wire (1) to heat shield (2).

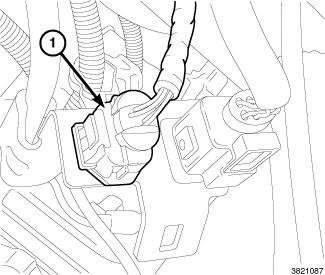

Fig 2: Upstream Exhaust Temperature Sensor Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the upstream temperature sensor wire harness connector (1).

Fig 3: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable.
