2.0L Diesel

Fig 1: Removing/Installing Starter

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Remove bolts (3) and the belly pan (2).

Fig 2: Accessory Drive Belt - 2.0L Diesel
Courtesy of CHRYSLER GROUP, LLC
Remove the accessory drive belt (1). Refer to BELT, SERPENTINE, REMOVAL .

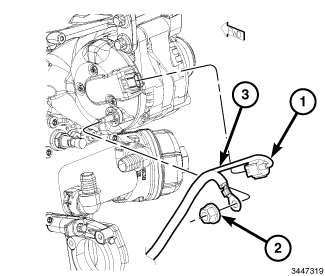

Fig 3: B+ Retainer, Generator Field Connector & B+ Cable
Courtesy of CHRYSLER GROUP, LLC
Remove the B+ nut (2).
Disconnect the generator field connector (1) and position aside the B+ cable (3).

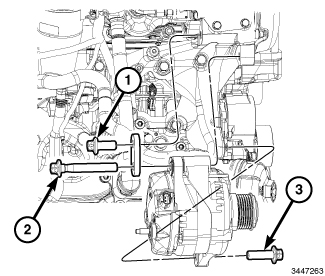

Fig 4: Generator Rear Support Bracket Retainer, Upper Generator Mounting Retainer & Lower Generator Mounting Retainer
Courtesy of CHRYSLER GROUP, LLC
Loosen the upper generator rear support bracket bolt (1) (not necessary to remove).
Remove bolts (2, 3) and the generator.
