Tray, Battery: Installation: Diesel

Fig 1: Identifying Battery Tray & Fasteners

Courtesy of CHRYSLER GROUP, LLC

Position the battery tray (5) onto the frame rail.
Loosely install the upper battery tray bolt (1, 2).
Partially lift the vehicle.
Install the bolt (2) that secures the washer solvent bottle to the battery tray (1) and tighten to 12 N.m (106 in. lbs.).
Install the outer side rail bolt (2). Tighten bolt to 12 N.m (106 in. lbs.).

Fig 2: Identifying Battery Tray, Inner Frame Rail & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the inner battery tray to frame rail bolts (3). Tighten bolt to 12 N.m (106 in. lbs.).

Fig 3: Removing/Installing Starter
Courtesy of CHRYSLER GROUP, LLC
Raise the vehicle.
Install the belly pan. Tighten bolts (2) to 10 N.m (89 in. lbs.).
Lower the vehicle.

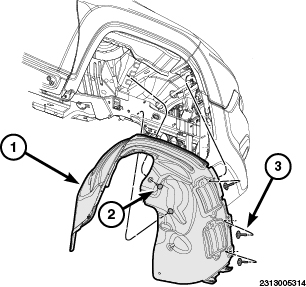

Fig 4: Identifying Inner Wheel Splash Shield & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Install the inner splash shield (1).
Install the wheel.

Fig 5: Identifying Battery Tray & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Tighten the upper battery tray bolts. Tighten bolt to 12 N.m (106 in. lbs.).

Fig 6: Battery Tray & Engine Wire Harness Retainer
Courtesy of CHRYSLER GROUP, LLC
Attach the hood release cable from battery tray.
Install the wiring harness (1) onto the battery tray (2).

Fig 7: Power Distribution Center
Courtesy of CHRYSLER GROUP, LLC
Install the PDC (3).

Fig 8: Battery & Cables
Courtesy of CHRYSLER GROUP, LLC
Install the battery. Refer to BATTERY, INSTALLATION .
