B1D5E-13-Power Seat Switch - Circuit Open: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

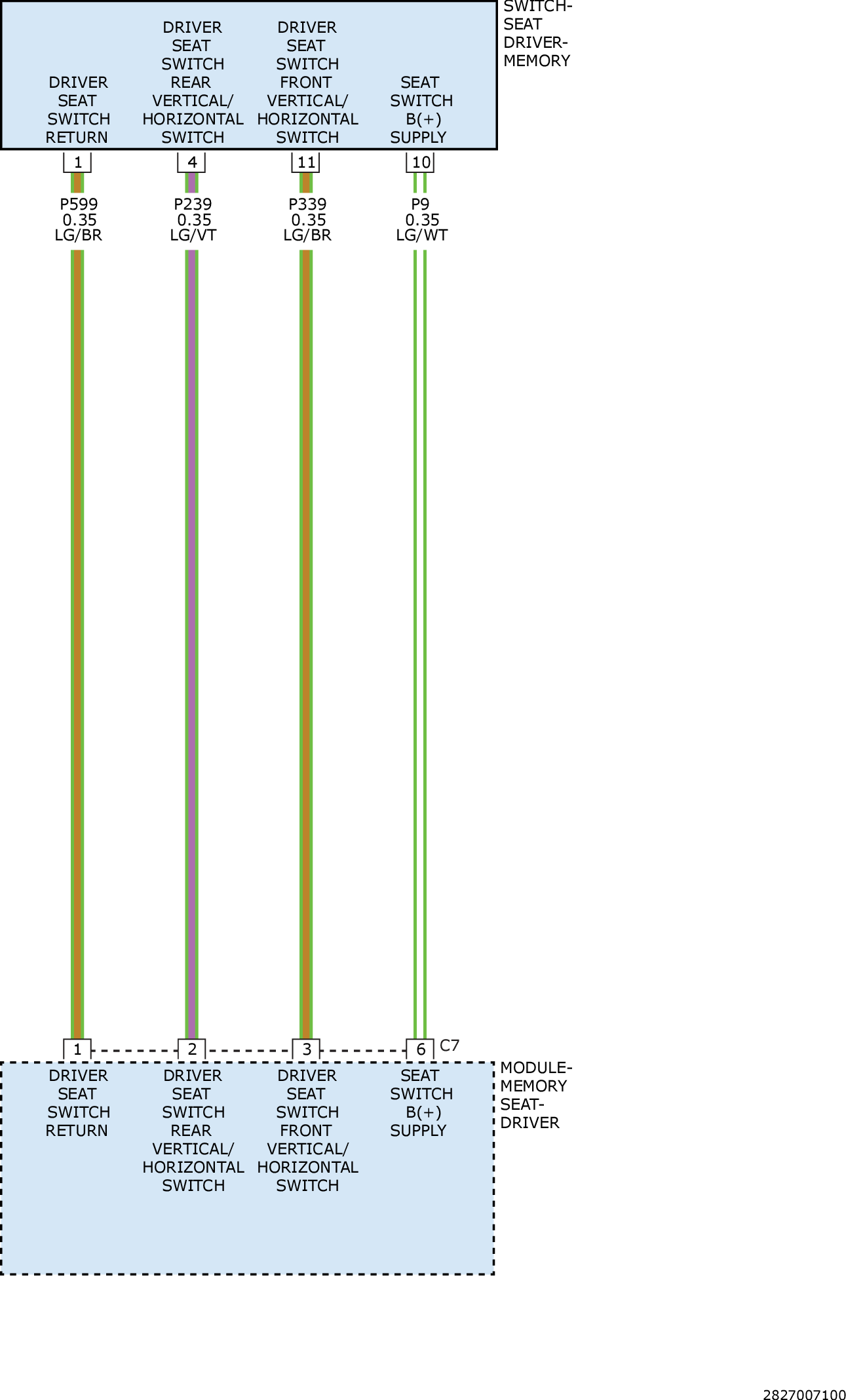

Fig 1: Driver Memory Seat Switch Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
