Module, Powertrain Control: Removal: Diesel

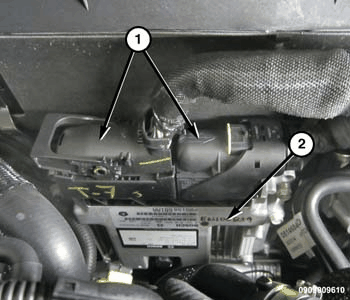

Fig 1: Powertrain Control Module (PCM) & Harness Connectors
GC0159536Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Disconnect the Powertrain Control Module (2) (PCM) wire harness connectors (1).

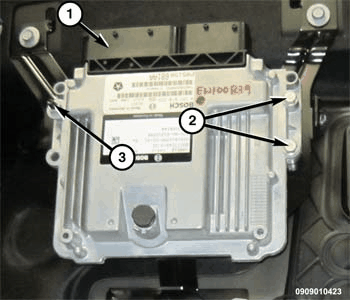

    Fig 2: Powertrain Control Module (PCM), Nuts & Bolts
    GC0159191Courtesy of CHRYSLER GROUP, LLC
  3. Remove nut (3), bolts (2) and the Powertrain Control Module (PCM) (1).
