P0717-Input Speed Sensor 1 Circuit No Signal: Notes

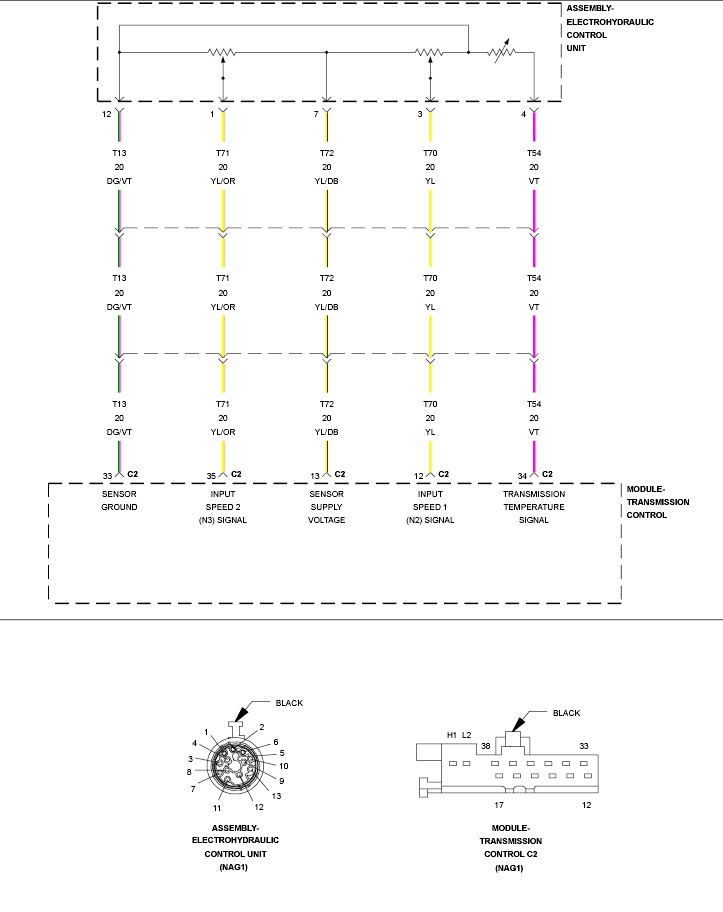

Fig 1: Transmission Control Module Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
