Navigation/Telecommunication (Service Information): Microphone: Installation: Installation

Fig 1: Microphone & Trim Panel

Courtesy of CHRYSLER GROUP, LLC

1. Install the microphone (2) into the trim panel (3) until the two clips (1) clip into place.
   Fig 2: Microphone Harness & Instrument Panel Harness

   Courtesy of CHRYSLER GROUP, LLC
2. Connect the microphone harness (1) to the instrument panel harness (2).

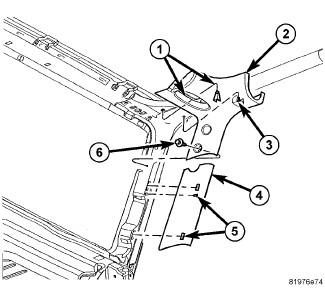

   Fig 3: Identifying A-Pillar Trim Components

   Courtesy of CHRYSLER GROUP, LLC
   NOTE:

   Passenger side shown in illustration, driver side similar.

3. Remove the drivers side A-pillar trim panel (2). Refer to PANEL, A-PILLAR TRIM, INSTALLATION .
