Reservoir, Power Steering Pump: Installation: Installation

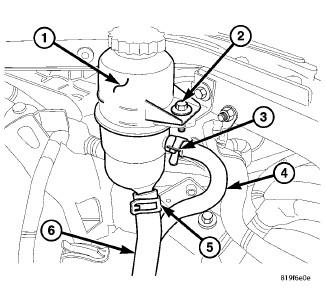

Fig 1: Reservoir, Hoses, Clamps & Bolt

Courtesy of CHRYSLER GROUP, LLC

1. Install the reservoir (1) onto the mounting bracket.
2. Install the mounting bolt (2).
3. Install the supply hose (6) to the reservoir (1).
4. Install the return hose (4) to the reservoir (1).
5. Reconnect the hose clamps (3AND5) on the hoses at the reservoir (1).
6. Add power steering fluid. Refer to STANDARD PROCEDURE .
