Capacitor, Ignition: Removal: Removal

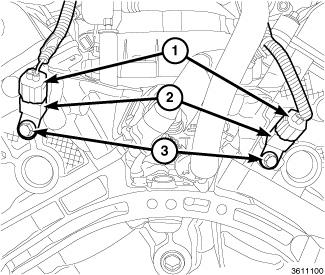

Fig 1: Electrical Connector, Mounting Bolt & Ignition Capacitor
GC0154074Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the electrical connector (1).
  3. Remove the mounting bolt (3) and the ignition capacitor (2).
