Sensor, Oxygen: Installation: Installation

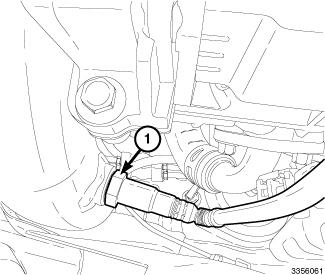

Fig 1: Oxygen Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Install the oxygen sensor (1) and tighten to 50 N.m (37 ft. lbs.).

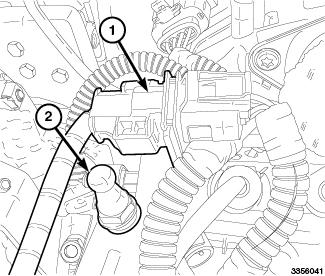

   Fig 2: Oxygen Sensor Connector & Ball Stud Fastener

   Courtesy of CHRYSLER GROUP, LLC
2. Connect the oxygen sensor harness connector (1).
3. Connect the negative battery cable.
