B25A7-00-Trunk/Liftgate Handle Sensor: Notes

WARNING: This page is about a different car, the 2012 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

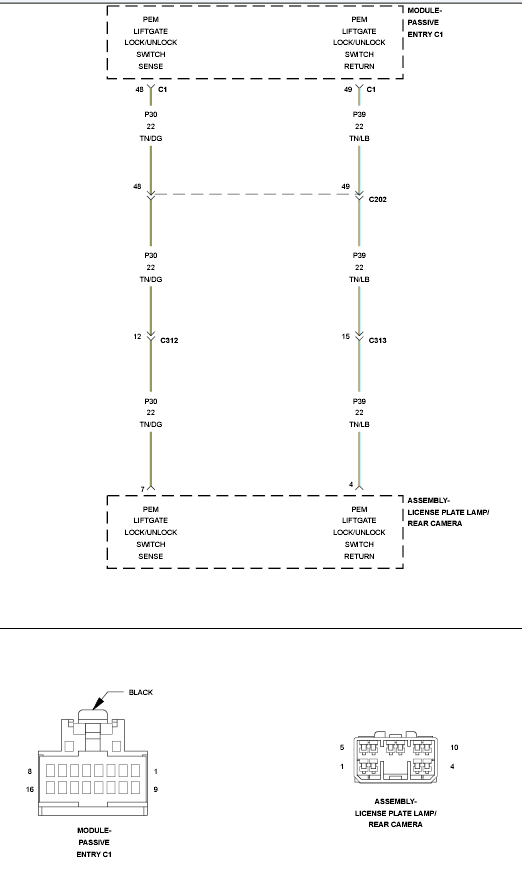

Fig 1: Trunk/Liftgate Door Handle Lock Switch Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

NOTE:

This DTC is set when there is a malfunction with the PEM Lock/Unlock Switch on the License Plate Lamp Bar.
