Throttle Body: Installation: 3.6L

Fig 1: Throttle Body-To-Intake Manifold Seal

Courtesy of CHRYSLER GROUP, LLC

Check the condition of the throttle body-to-intake manifold seal (1). The seal can be reused if not damaged.
Clean the mating surfaces of the throttle body and intake manifold.

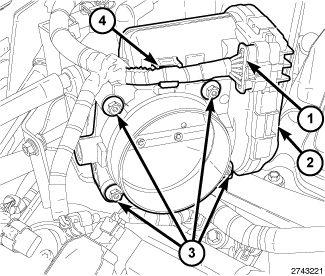

Fig 2: Electrical Connector, Electronic Throttle Control (ETC), Clip & Mounting Bolts
Courtesy of CHRYSLER GROUP, LLC
Position the throttle body (2) to the intake manifold.
Install the throttle body mounting bolts (3) and tighten in a criss-cross pattern sequence to 7 N.m (62 in. lbs.).
Connect the electrical connector (1) to the Electronic Throttle Control (ETC) (2) and secure the ETC harness to the clip (4) on the throttle body.

Fig 3: Air Inlet Hose, Air Temperature (IAT) Sensor Connector & Clamps
Courtesy of CHRYSLER GROUP, LLC
Install the air inlet hose (3) to the air cleaner body and the throttle body. Tighten the clamps (1) and (4) to 4 N.m (35 in. lbs.).
Connect the electrical connector (2) to the Inlet Air Temperature (IAT) sensor.

Fig 4: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
