Negative Battery

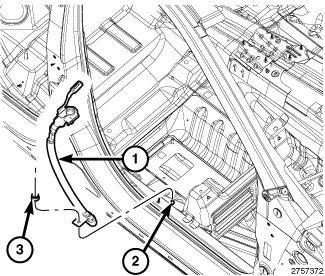

Fig 1: Negative Battery Cable & Body
GC0146919Courtesy of CHRYSLER GROUP, LLC
NOTE:

Shown in illustration with seat removed for clarity.

  1. Install the negative battery cable.
  2. Install the negative battery cable (1) retainer to body (3).
  3. Connect the negative the negative battery cable.

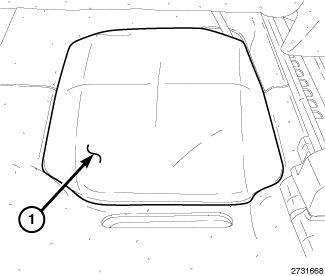

    Fig 2: Battery Cover
    GC0145460Courtesy of CHRYSLER GROUP, LLC
  4. Install the battery cover (1).
  5. Position back the passenger front seat.
