Continuously Variable Transmission (CVT) (Service Information): Differential: Assembly: Assembly

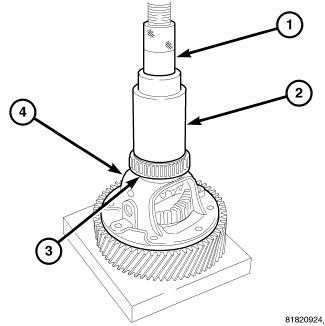

Fig 1: Press Bearings To Carrier

Courtesy of CHRYSLER GROUP, LLC

1. Use Installer C-3716-A and Handle (special tool #C-4171, Driver Handle, Universal) to install the bearings onto the carrier (both sides).

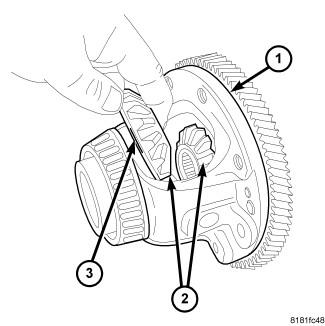

   Fig 2: Side Gears

   Courtesy of CHRYSLER GROUP, LLC
2. Install the side gears (2) and shims (3) onto the carrier.

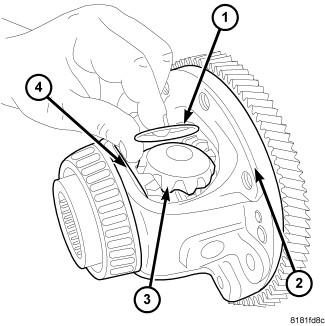

   Fig 3: Pinion Gear Shim

   Courtesy of CHRYSLER GROUP, LLC
3. Place the pinion gears (3) onto the side gears with the correct shims (1).
4. Roll into place.
   Fig 4: Pinion Shaft

   Courtesy of CHRYSLER GROUP, LLC
5. Install the pinion shaft (2).

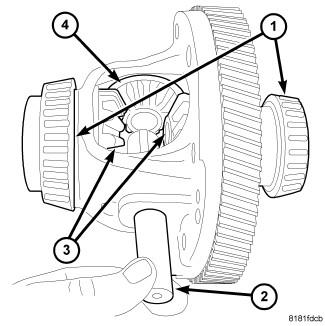

   Fig 5: Pinion Shaft Roll Pin

   Courtesy of CHRYSLER GROUP, LLC
6. Use a new roll pin (3).

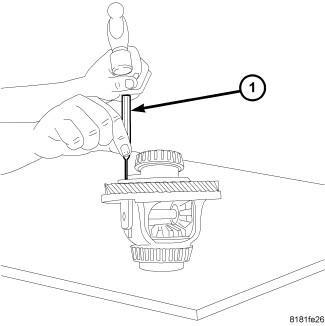

   Fig 6: Pin Punch At Roll Pin

   Courtesy of CHRYSLER GROUP, LLC
7. Install the roll pin (3) using a pin punch (1).
