Continuously Variable Transmission (CVT) (Service Information): Differential: Disassembly: Disassembly

Fig 1: Pin Punch At Roll Pin

Courtesy of CHRYSLER GROUP, LLC

1. Remove the roll pin using a pin punch (1).
   Fig 2: Pinion Shaft Roll Pin

   Courtesy of CHRYSLER GROUP, LLC
2. Discard the old roll pin (3).
   Fig 3: Pinion Shaft

   Courtesy of CHRYSLER GROUP, LLC
3. Remove the pinion shaft (2) and inspect for excessive ware.
   Fig 4: Pinion Gear Shim

   Courtesy of CHRYSLER GROUP, LLC
4. Roll the pinion gears (3) and shims (1) out of the carrier (2).
5. Remove the pinion gear shims (1) and mark for installation.

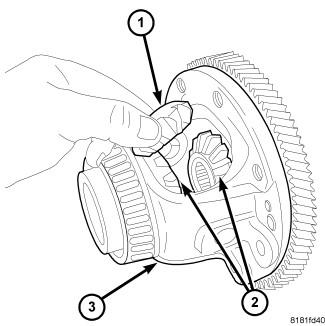

   Fig 5: Pinion Gears

   Courtesy of CHRYSLER GROUP, LLC
6. Remove the pinion gears (1) from the carrier (3).
   Fig 6: Side Gears

   Courtesy of CHRYSLER GROUP, LLC
7. Remove the side gears (2) and shims (3) from the carrier.

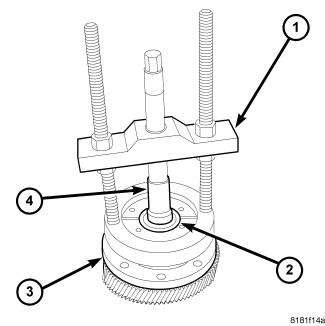

   Fig 7: Remove Carrier Bearings

   Courtesy of CHRYSLER GROUP, LLC
8. If the vehicle is a two wheel drive remove the carrier bearings using Puller (special tool #C-293-PA, Puller, Press), six Inserts (special tool #C-293-40, Block Set, Puller) and Press Insert (special tool #C-4996, Adapter, Plug).

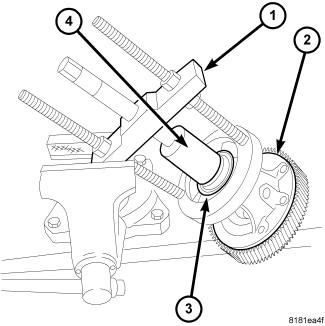

   Fig 8: Remove Carrier Bearings

   Courtesy of CHRYSLER GROUP, LLC
9. If all wheel drive use Puller (special tool #C-293-PA, Puller, Press), six (special tool #9613, Adapters, Puller) Inserts and Insert (special tool #8888, Plug, Differential Bearing) to remove the carrier bearings.
