Diagnostic Test

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR RELATED DIAGNOSTIC TROUBLE CODES
    1. Turn the ignition on.
    2. With the scan tool, read DTCs.

      Does the scan tool display any seat position sensor DTCs?

      Yes

      No

      • Go To  2.
  2. TEST FOR INTERMITTENT CONDITION
    1. Turn the ignition on.
    2. With the scan tool, record and erase DTCs.
    3. Move the Seat Switch in the horizontal position three times.
    4. With the scan tool, read the active DTCs.

      Does the scan tool display B1D7B-00-SEAT HORIZONTAL MOTOR CONTROL CIRCUIT PERFORMANCE?

      Yes

      • Go To  3.

      No

      • Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
      • Perform the POWER SEAT SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - POWER SEAT SYSTEM VERIFICATION TEST .
  3. CHECKING THE (G401) DRIVER SEAT HORIZONTAL POSITION SENSE CIRCUIT
    Fig 1: Measuring Voltage Between Driver Sense Circuit & Ground
    GC0151303Courtesy of CHRYSLER GROUP, LLC
    1. Disconnect the Driver Horizontal Seat Adjuster Motor harness connector.
    2. Measure the voltage between the (G401) Driver Seat Horizontal Position Sense circuit and ground.

      Is the voltage above 11 volts?

      Yes

      • Go To  4.

      No

      • Go To  11.
  4. CHECKING THE (G491) DRIVER SEAT HORIZONTAL SENSOR GROUND CIRCUIT

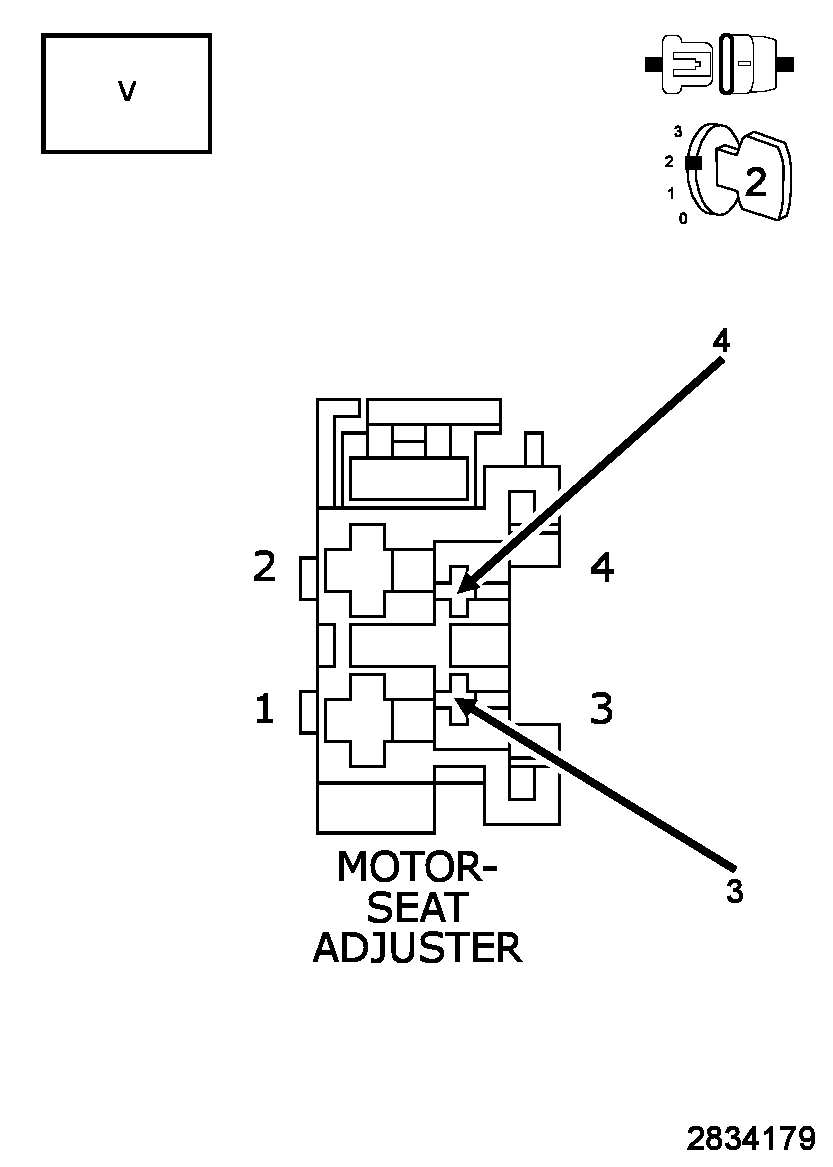

    Fig 2: Measuring Voltage Between Driver Sense Circuit & Driver Sensor Ground Circuit
    GC0151306Courtesy of CHRYSLER GROUP, LLC
    1. Measure the voltage between the (G401) Driver Seat Horizontal Position Sense circuit and the (G491) Driver Seat Horizontal Sensor Ground circuit.

      Is the voltage above 11 volts?

      Yes

      • Go To  5.

      No

      • Go To  12.
  5. CHECKING THE (P115) DRIVER SEAT HORIZONTAL FORWARD DRIVER CIRCUIT

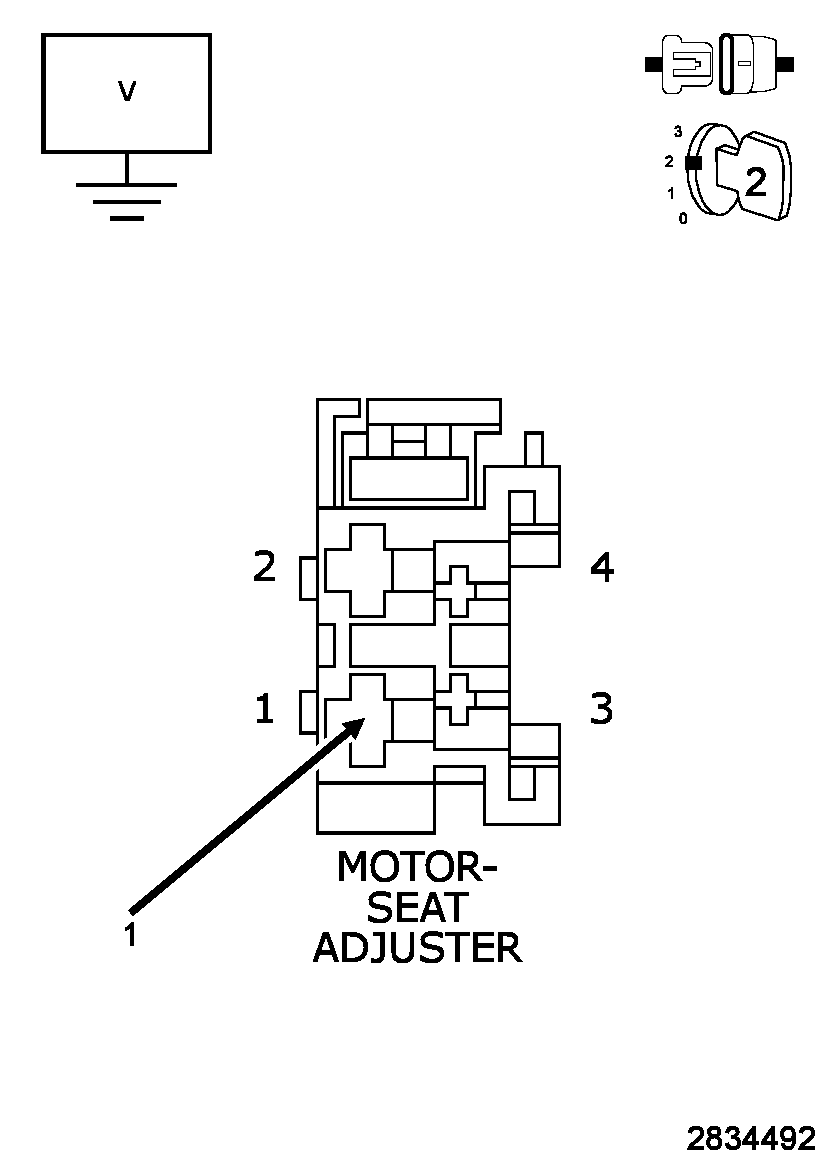

    Fig 3: Measuring Voltage Between Driver Circuit & Ground
    GC0151313Courtesy of CHRYSLER GROUP, LLC
    1. Measure the voltage between the (P115) Driver Seat Horizontal Forward Driver circuit and ground.

      Is the voltage above 1 volt?

      Yes

      • Go To  13.

      No

      • Go To  6.
  6. CHECKING THE (P117) DRIVER SEAT HORIZONTAL REARWARD DRIVER CIRCUIT

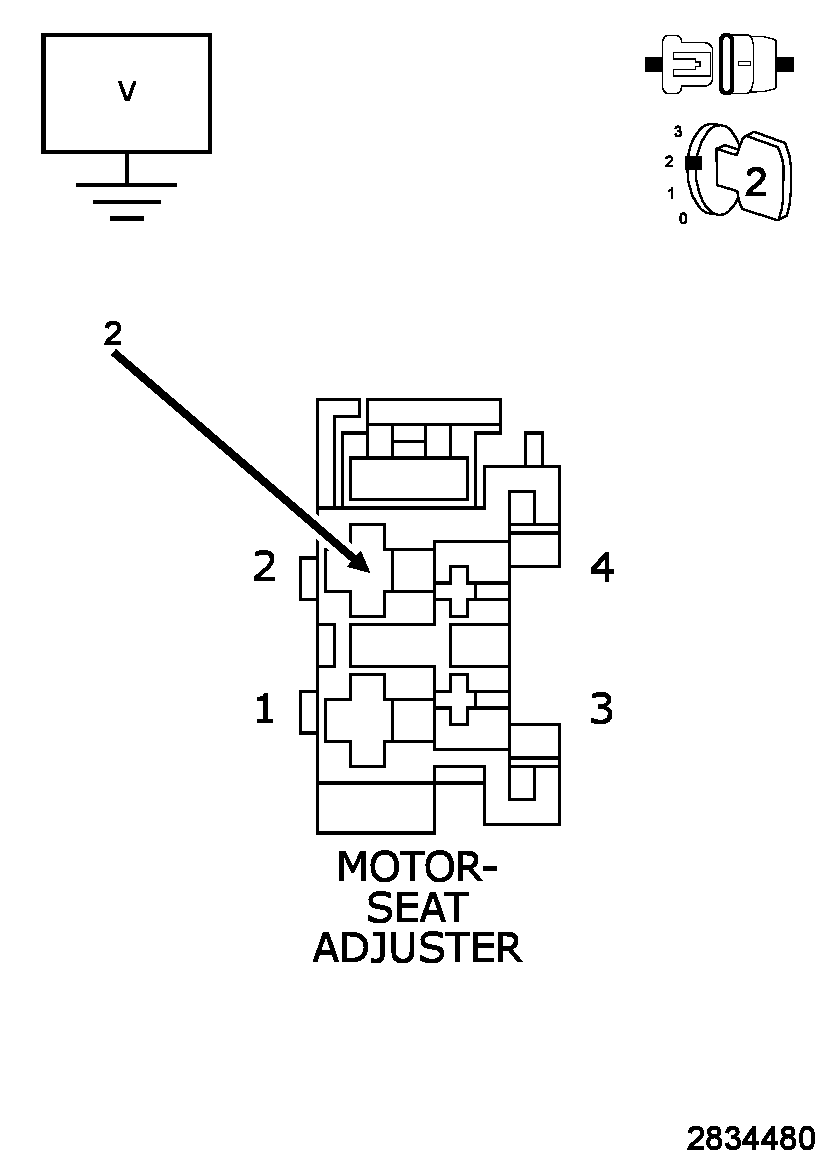

    Fig 4: Checking Driver Seat Horizontal Rearward Driver Circuit
    GC0151312Courtesy of CHRYSLER GROUP, LLC
    1. Measure the voltage between the (P117) Driver Seat Horizontal Rearward Driver circuit and ground.

      Is the voltage above 1 volt?

      Yes

      • Go To  14.

      No

      • Go To  7.
  7. CHECKING THE (P115) DRIVER SEAT HORIZONTAL FORWARD DRIVER CIRCUIT

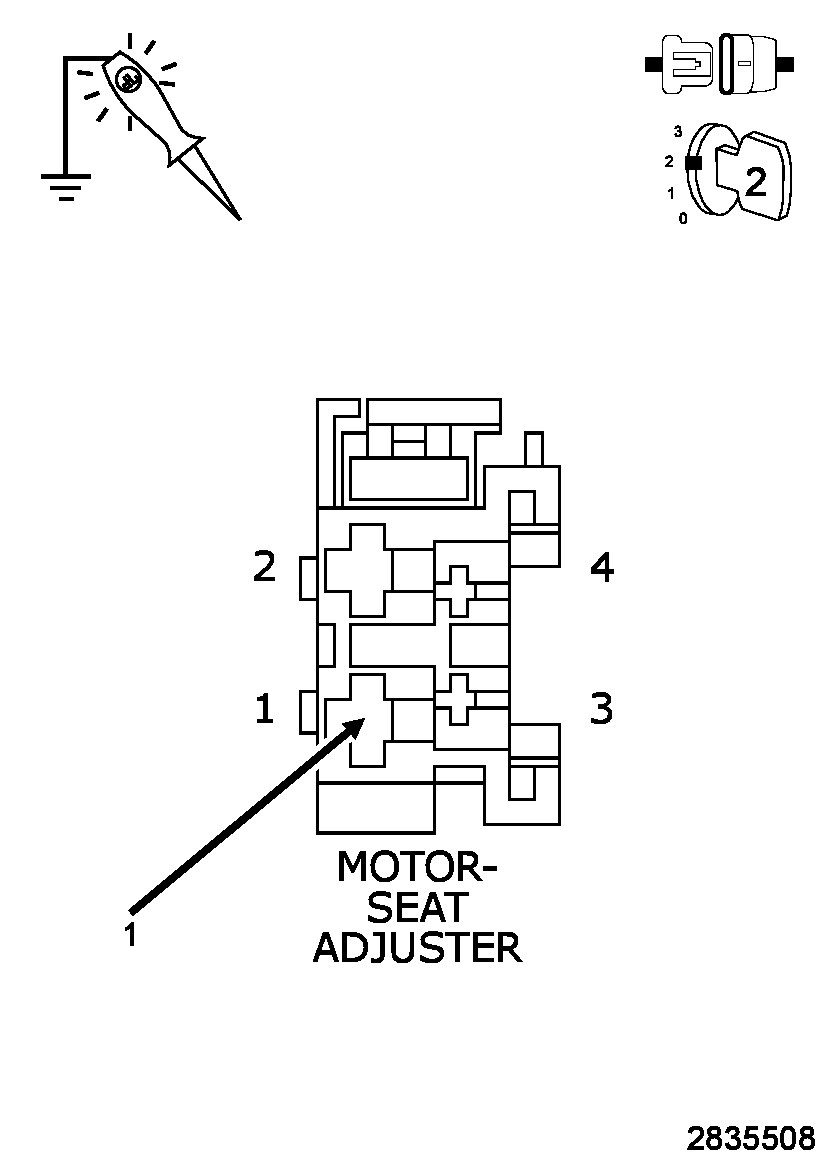

    Fig 5: Checking Driver Seat Horizontal Forward Driver Circuit
    GC0151330Courtesy of CHRYSLER GROUP, LLC
    1. Connect a 12-volt test light between the (P115) Driver Seat Horizontal Forward Driver circuit and ground.
    2. While observing the test light, move the Driver Seat Horizontal Switch in the forward position.
      NOTE:

      The test lamp must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

      Does the test lamp illuminate brightly?

      Yes

      • Go To  8.

      No

      • Go To  15.
  8. CHECKING THE (P117) DRIVER SEAT HORIZONTAL REARWARD DRIVER CIRCUIT

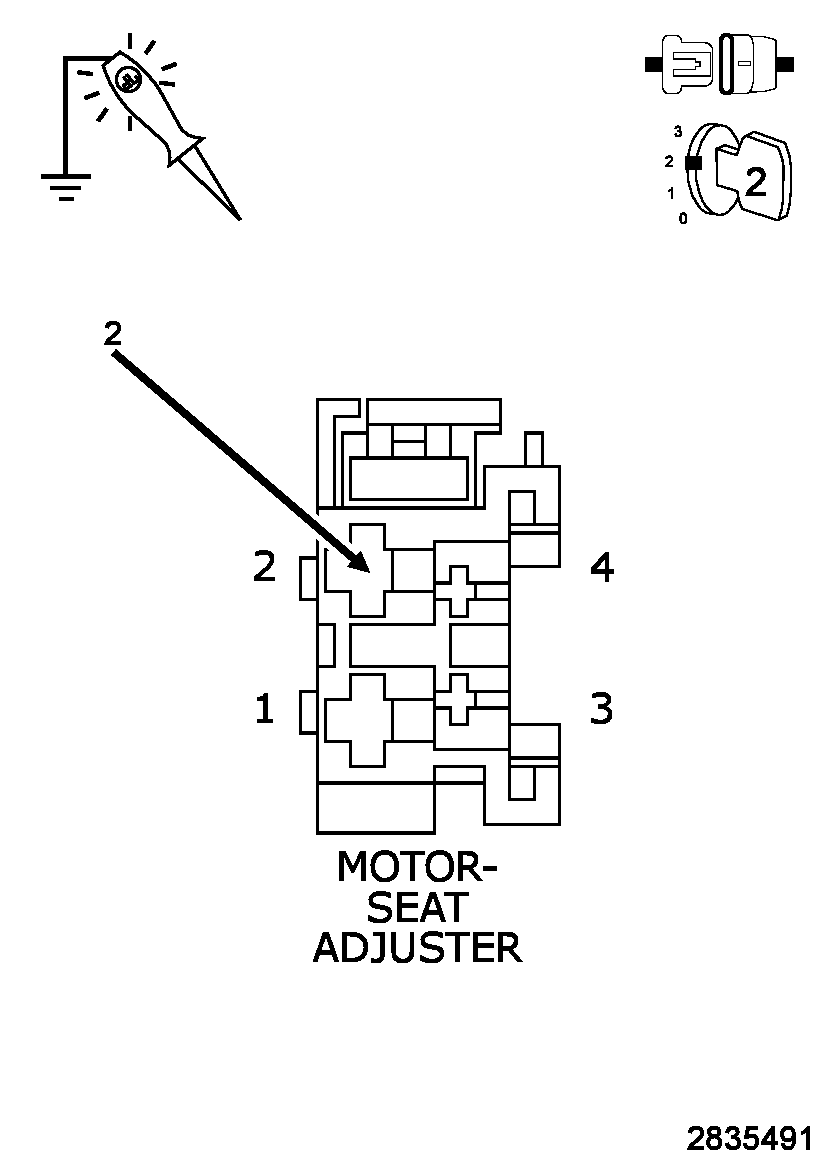

    Fig 6: Checking Driver Seat Horizontal Rearward Driver Circuit
    GC0151329Courtesy of CHRYSLER GROUP, LLC
    1. Connect a 12-volt test light between the (P117) Driver Seat Horizontal Rearward Driver circuit and ground.
    2. While observing the test light, move the Driver Seat Horizontal Switch in the rearward position.
      NOTE:

      The test lamp must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

      Does the test lamp illuminate brightly?

      Yes

      • Go To  9.

      No

      • Go To  17.
  9. CHECKING THE DRIVER SEAT HORIZONTAL REARWARD DRIVER

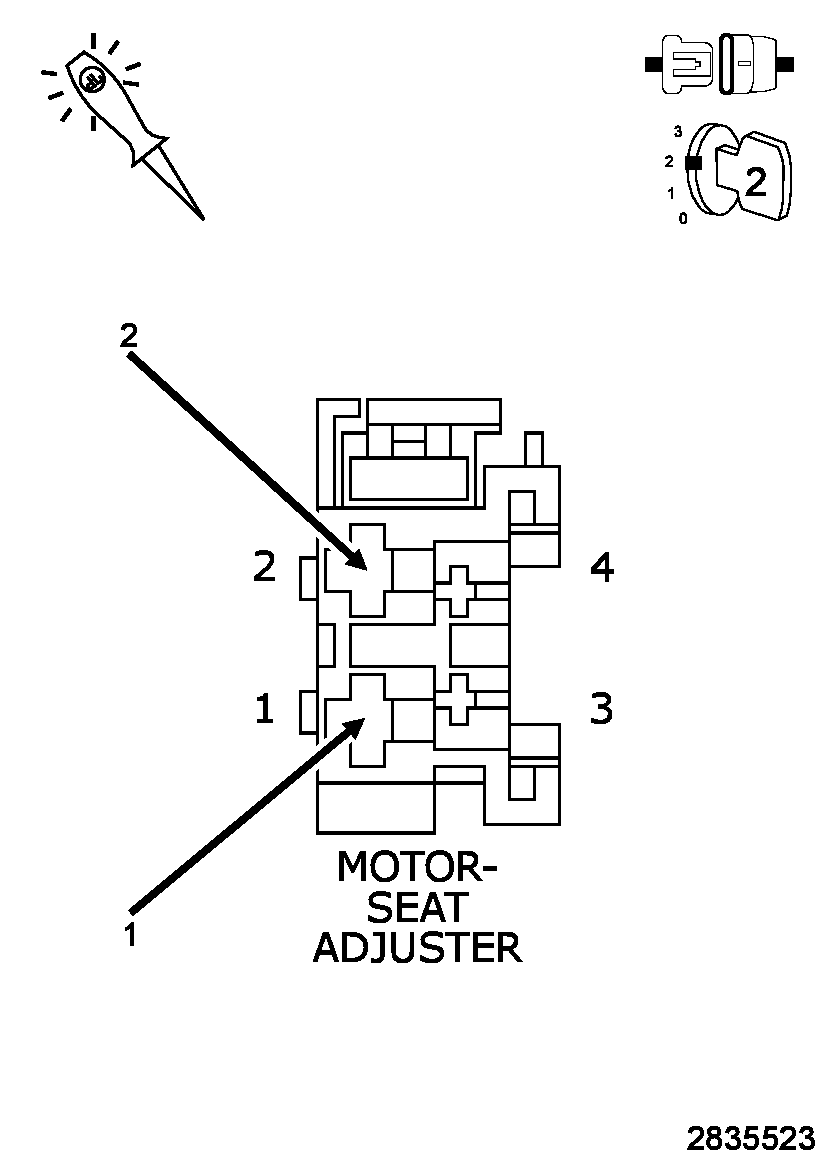

    Fig 7: Checking The Driver Seat Horizontal Rearward Driver
    GC0151331Courtesy of CHRYSLER GROUP, LLC
    1. Connect a 12-volt test light between the (P115) Driver Seat Horizontal Forward Driver circuit and the (P117) Driver Seat Horizontal Rearward Driver circuit.
    2. While observing the test light, move the Driver Seat Horizontal Switch in the forward position.
      NOTE:

      The test lamp must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

      Does the test lamp illuminate brightly?

      Yes

      • Go To  10.

      No

      • Go To  19.
  10. CHECKING THE DRIVER SEAT HORIZONTAL FORWARD DRIVER
    Fig 8: Checking The Driver Seat Horizontal Rearward Driver
    GC0151331Courtesy of CHRYSLER GROUP, LLC
    1. While observing the test light, move the Driver Seat Horizontal Switch in the rearward position.
      NOTE:

      The test lamp must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

      Does the test lamp illuminate brightly?

      Yes

      No

      • Go To  19.
  11. CHECKING THE (G401) DRIVER SEAT HORIZONTAL POSITION SENSE CIRCUIT FOR AN OPEN OR EXCESSIVE RESISTANCE

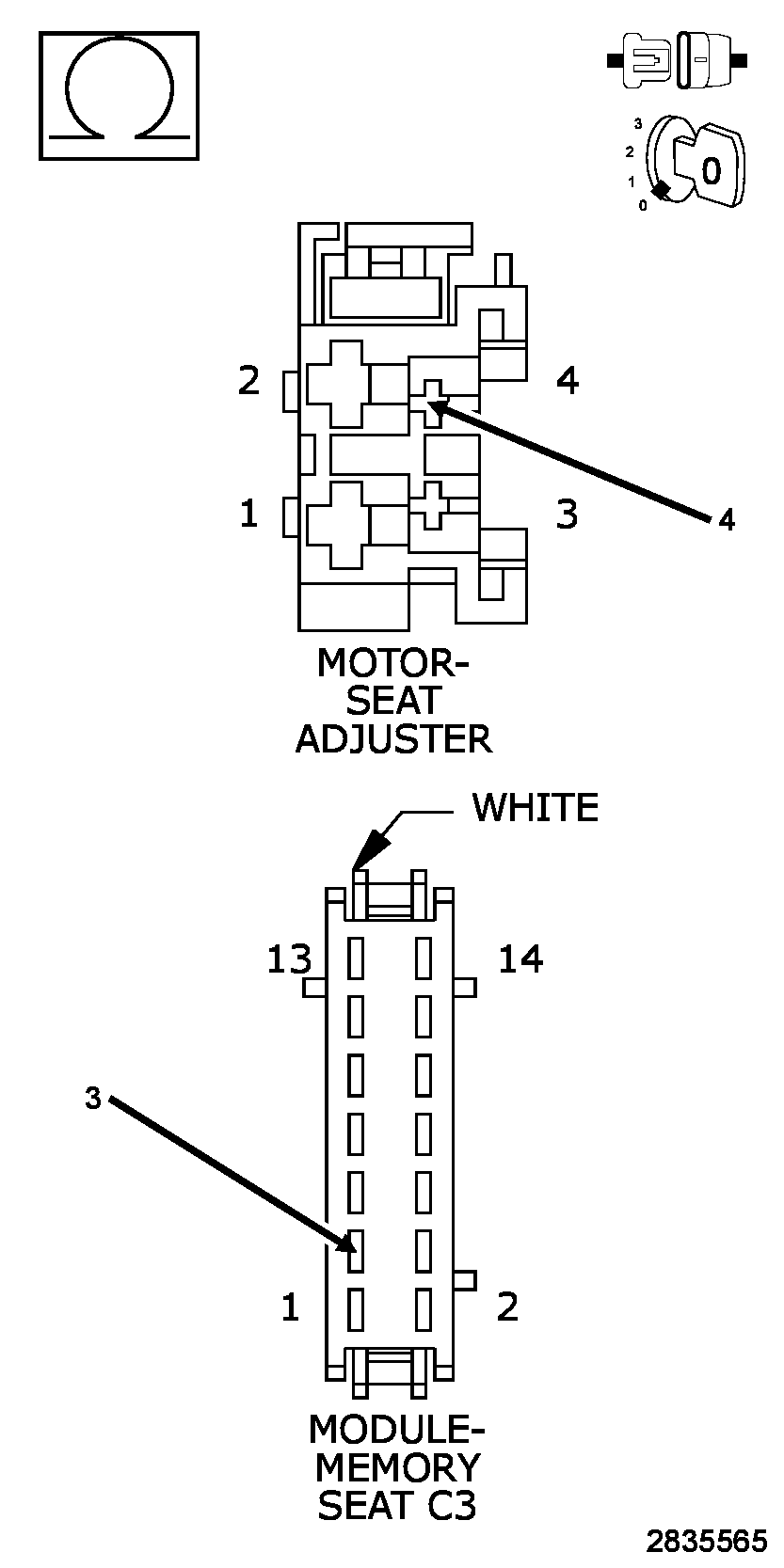

    Fig 9: Checking Driver Seat Horizontal Position Sense Circuit For Open Or Excessive Resistance
    GC0151334Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the MSMD C3 harness connector.
    3. Measure the resistance of the (G401) Driver Seat Horizontal Position Sense circuit between the Driver Seat Horizontal Adjuster Motor harness connector and the MSMD harness connector.

      Is the resistance above 10 Ohms?

      Yes

      No

      • Go To  19.
  12. CHECKING THE (G491) DRIVER SEAT HORIZONTAL SENSOR GROUND CIRCUIT FOR AN OPEN OR EXCESSIVE RESISTANCE

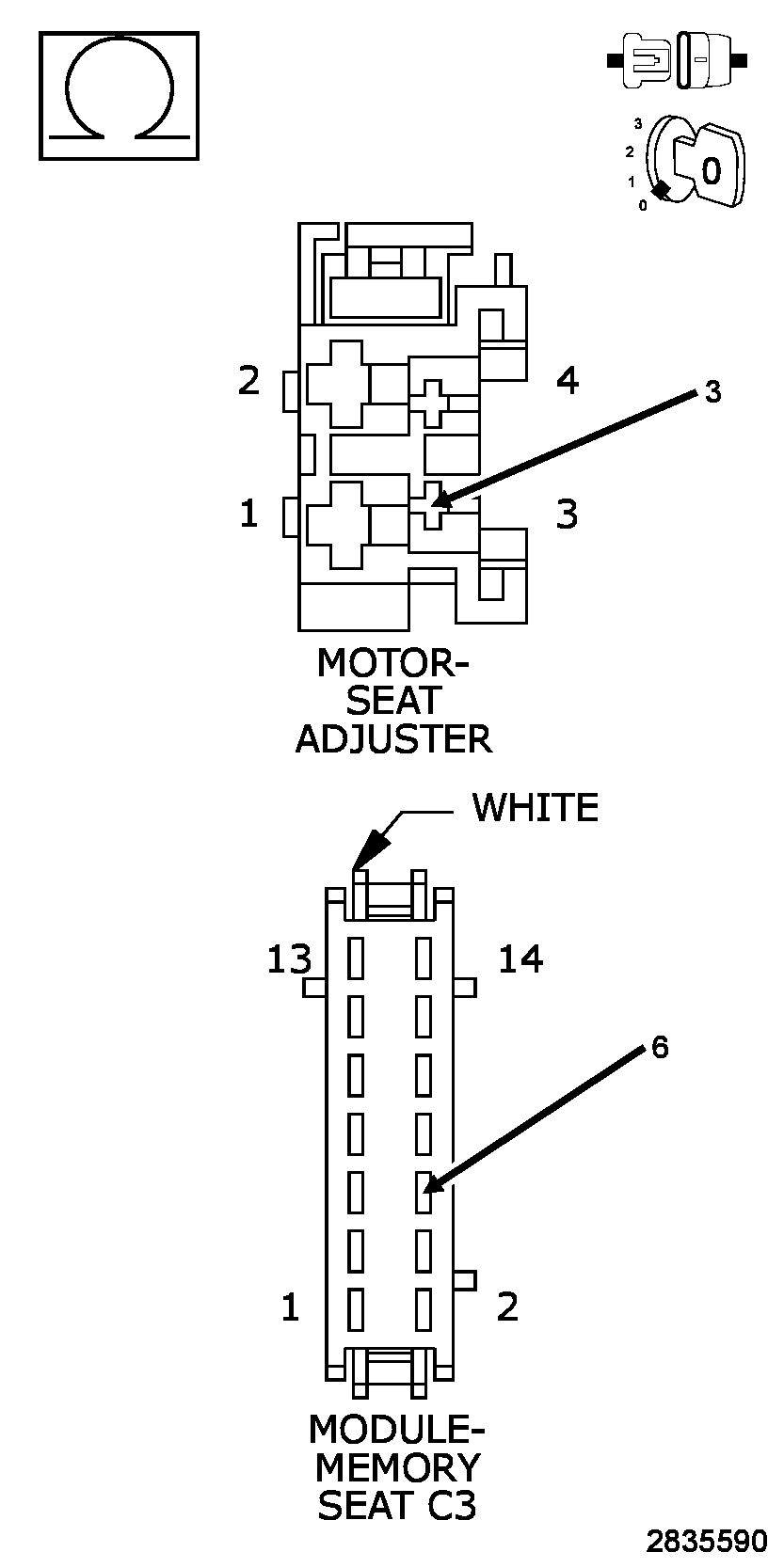

    Fig 10: Checking Driver Seat Horizontal Sensor Ground Circuit For Open Or Excessive Resistance
    GC0151336Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the MSMD C3 harness connector.
    3. Measure the resistance of the (G491) Driver Seat Horizontal Sensor Ground circuit between the Driver Seat Horizontal Adjuster Motor harness connector and the MSMD harness connector.

      Is the resistance above 10 Ohms?

      Yes

      No

      • Go To  19.
  13. CHECKING THE (P115) DRIVER SEAT HORIZONTAL FORWARD DRIVER CIRCUIT FOR A SHORT TO VOLTAGE
    Fig 11: Measuring Voltage Between Driver Circuit & Ground
    GC0151313Courtesy of CHRYSLER GROUP, LLC
    1. Disconnect the MSMD C3 harness connector.
    2. Measure the voltage between the (P115) Driver Seat Horizontal Forward Driver circuit and ground.

      Is the voltage above 1 volt?

      Yes

      No

      • Go To  19.
  14. CHECKING THE (P117) DRIVER SEAT HORIZONTAL REARWARD DRIVER CIRCUIT FOR A SHORT TO VOLTAGE
    Fig 12: Checking Driver Seat Horizontal Rearward Driver Circuit
    GC0151312Courtesy of CHRYSLER GROUP, LLC
    1. Disconnect the MSMD C3 harness connector.
    2. Measure the voltage between the (P117) Driver Seat Horizontal Rearward Driver circuit and ground.

      Is the voltage above 1 volt?

      Yes

      No

      • Go To  19.
  15. CHECKING THE (P115) DRIVER SEAT HORIZONTAL FORWARD DRIVER CIRCUIT FOR A SHORT TO GROUND

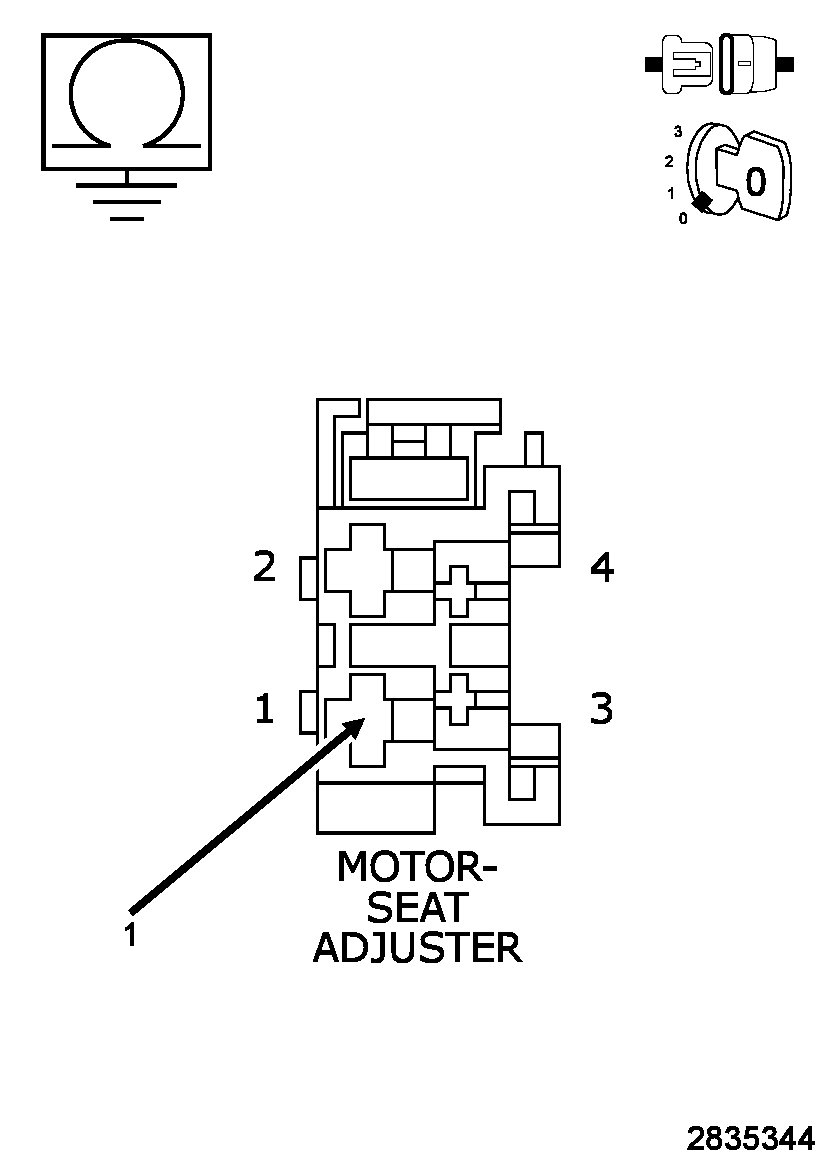

    Fig 13: Checking Driver Seat Horizontal Forward Driver Circuit For A Short To Ground
    GC0151321Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the MSMD C3 harness connector.
    3. Measure the resistance between ground and the (P115) Driver Seat Horizontal Forward Driver circuit.

      Is the resistance below 1K Ohms?

      Yes

      No

      • Go To  16.
  16. CHECKING THE (P115) DRIVER SEAT HORIZONTAL FORWARD DRIVER CIRCUIT FOR AN OPEN OR EXCESSIVE RESISTANCE

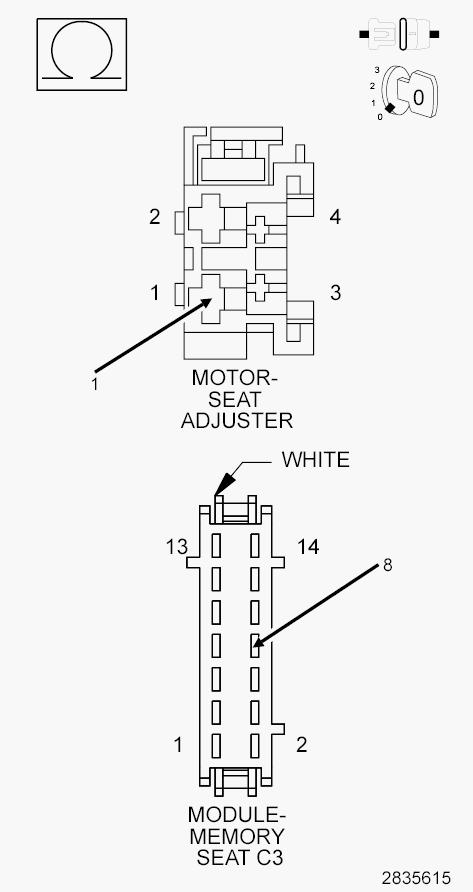

    Fig 14: Checking Driver Seat Horizontal Forward Driver Circuit For An Open Or Excessive Resistance
    GC0151338Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (P115) Driver Seat Horizontal Forward Driver circuit between the Driver Seat Horizontal Adjuster Motor harness connector and the MSMD harness connector.

      Is the resistance above 10 Ohms?

      Yes

      No

      • Go To  19.
  17. CHECKING THE (P117) DRIVER SEAT HORIZONTAL REARWARD DRIVER CIRCUIT FOR A SHORT TO GROUND

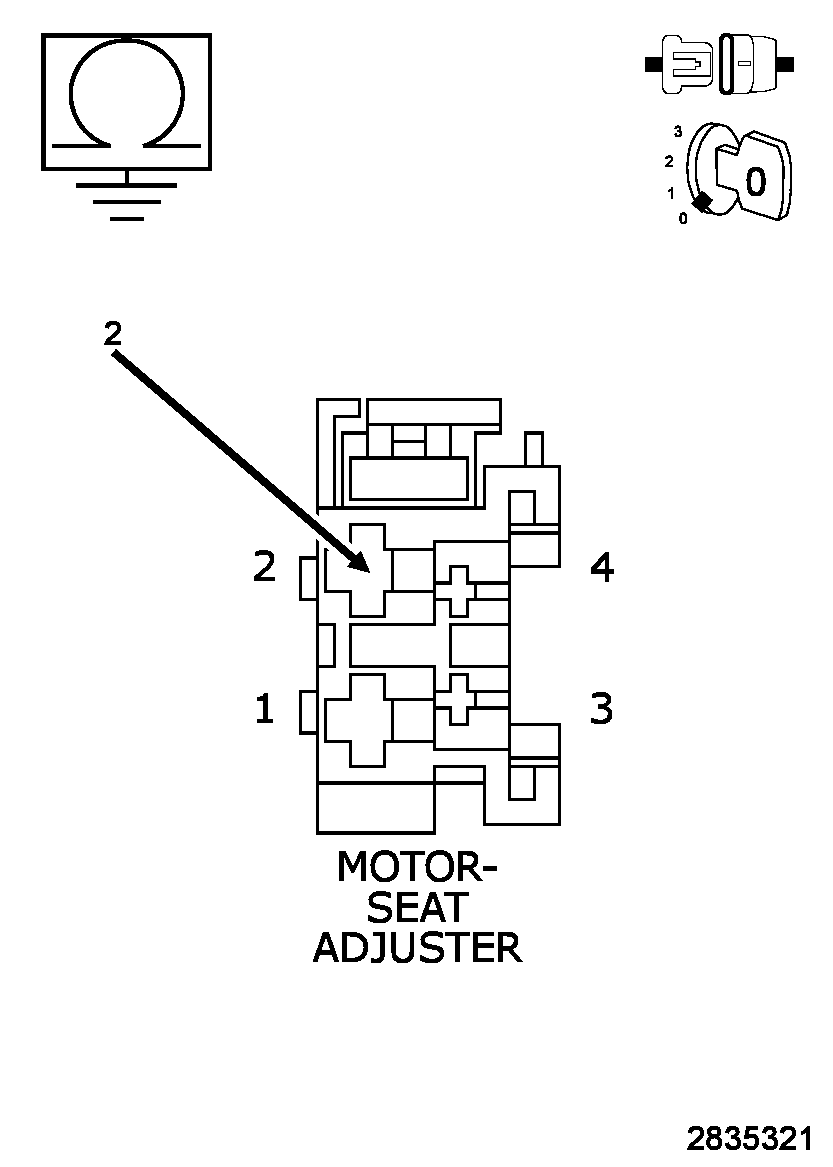

    Fig 15: Checking Driver Seat Horizontal Rearward Driver Circuit For A Short To Ground
    GC0151319Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the MSMD C3 harness connector.
    3. Measure the resistance between ground and the (P117) Driver Seat Horizontal Rearward Driver circuit.

      Is the resistance below 1K Ohms?

      Yes

      No

      • Go To  18.
  18. CHECKING THE (P117) DRIVER SEAT HORIZONTAL REARWARD DRIVER CIRCUIT FOR AN OPEN OR EXCESSIVE RESISTANCE

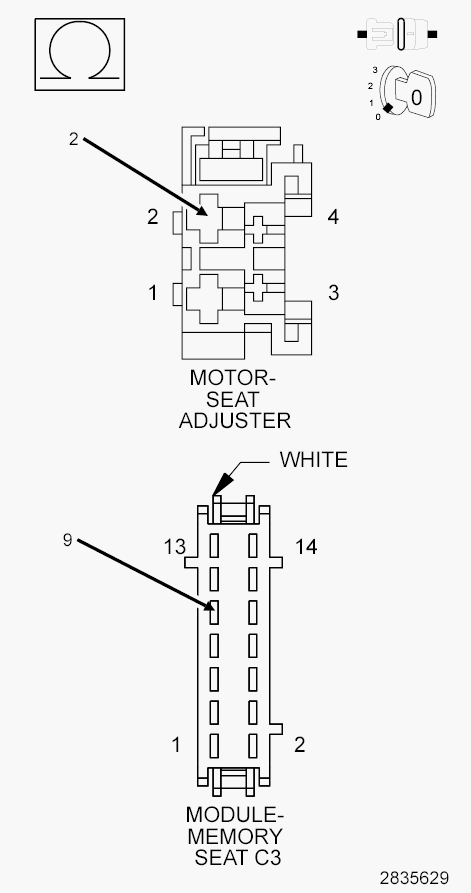

    Fig 16: Checking Driver Seat Horizontal Rearward Driver Circuit For An Open Or Excessive Resistance
    GC0151339Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (P117) Driver Seat Horizontal Rearward Driver circuit between the Driver Seat Horizontal Adjuster Motor harness connector and the MSMD harness connector.

      Is the resistance above 10 Ohms?

      Yes

      No

      • Go To  19.
  19. MEMORY SEAT MODULE (MSMD)
    1. Using the wiring diagram/schematic as a guide, inspect the wiring and harness connectors between the Driver Seat Horizontal Adjuster Motor and the MSMD.
    2. Look for any chafed, pierced, pinched, or partially broken wires.
    3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the Driver Seat Horizontal Adjuster Motor and MSMD harness connectors.
    4. Perform any Technical Service Bulletins that may apply.

      Were there any problems found?

      Yes

      No
