Upper Control Arm: Removal: Removal

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Fig 1: Tire And Wheel Mounting
Courtesy of CHRYSLER GROUP, LLC
Remove the wheel mounting nuts (3), then the tire and wheel assembly (1).

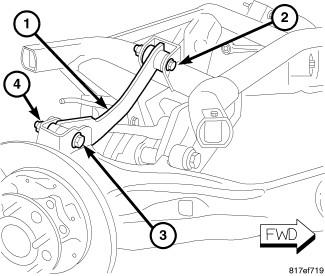

Fig 2: Rear Upper Control Arm Mounting
Courtesy of CHRYSLER GROUP, LLC
Remove the nut (4) and bolt (3) securing the upper control arm (1) to the trailing link.
Remove the bolt (2) securing the upper control arm (1) to the crossmember.
Remove the upper control arm (1).
