Section 38 (Overhead Console (Service Information)): Removal: Removal

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

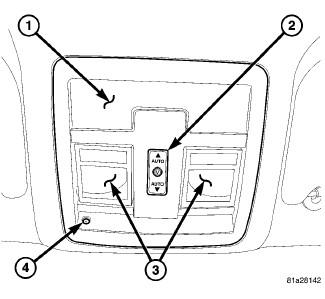

Fig 1: Identifying Overhead Console, Sunroof Switch, Courtesy Lamps & Infrared Temperature Sensor

Courtesy of CHRYSLER LLC

Disconnect and isolate the battery negative cable.
Using your fingertips, grasp the sides of the overhead console (1) and pull straight down evenly to disengage the three snap clips from the mounting bracket.

Fig 2: Identifying Overhead Console & Wire Harness Connector
Courtesy of CHRYSLER LLC
Lower the overhead console (1) far enough to access the wire harness connector (2).
If equipped, disconnect the courtesy lamps, infrared temperature sensor and power sunroof switch electrical connectors.
Remove the overhead console (1) assembly from the vehicle.
