OUTLET, Power, AC: Installation: Installation
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

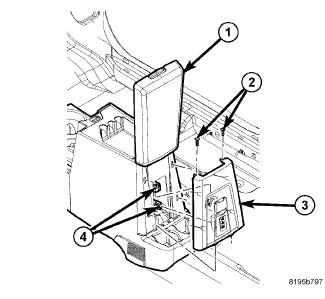

- Install the AC power outlet into the floor console trim panel (3).
- Connect the electrical connectors (4) to the panel (3).
- Align the trim panel (3) to the console, use hand pressure to seat the clips.
- Install the two screws (2) to the trim panel (3).
- Connect the battery negative cable.
