MOTOR, Blower: Description: Description
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

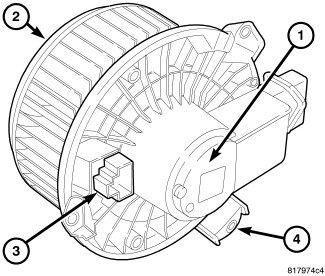

Typical blower motor shown,
The blower motor (1) is a 12-volt, direct current (DC) motor mounted within a plastic housing with three integral mounting tabs (4), an integral wire harness connector (3) and a squirrel cage-type blower wheel (2) that is secured to the blower motor shaft. The blower motor wheel is positioned within the HVAC air inlet housing, which is mounted to the passenger side end of the HVAC housing.
The blower motor can be accessed for service from underneath the instrument panel.
