Valve Body: Assembly: Assembly

Fig 1: Lip Seal At Transaxle Case

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Do not re-use the lip seal. Apply CVT fluid when installing the lip seal.

Install the new lip seal (1) into the transaxle case.

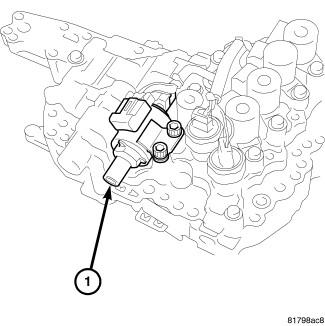

Fig 2: Stepping Motor
Courtesy of CHRYSLER GROUP, LLC
Install the stepping motor (1) onto the control valve body. Install and tighten the mounting bolts to 8 N.m (70 in. lbs.).

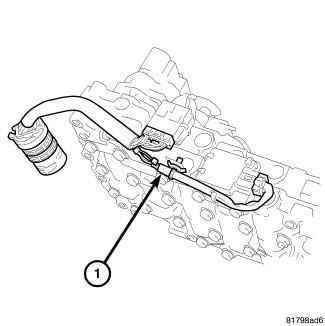

Fig 3: Valve Body Harness
Courtesy of CHRYSLER GROUP, LLC
Install the valve body harness (1) onto the control valve body.

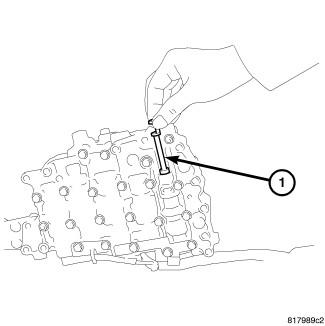

Fig 4: Manual Valve
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Ensure the manual valve is free of dirt, lint or other debris. Apply CVT fluid when installing the manual valve.
Install the manual valve (1) into the control valve body.

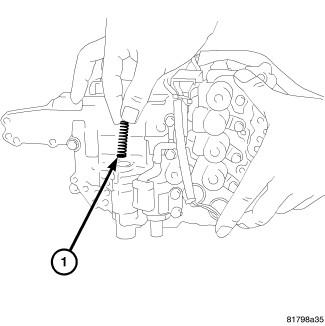

Fig 5: Removing/Installing Return Spring At Valve Body
Courtesy of CHRYSLER GROUP, LLC
Install the return spring (1) into the control valve body.

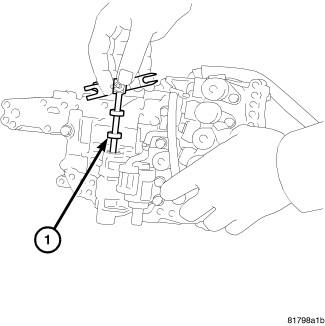

Fig 6: Pulley Ratio Linkage
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Apply CVT fluid when installing the pulley ratio linkage.
Hook the pawl of the pulley ratio linkage (1) onto the stepping motor and install it on the control valve.
