Diagnosis And Testing - Test Ports

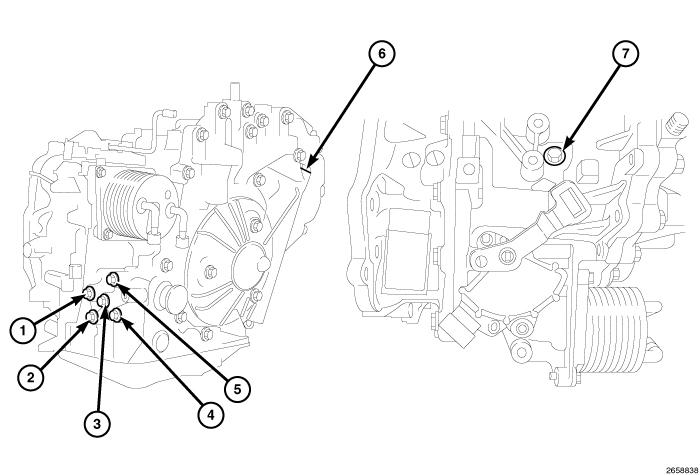

Fig 1: Test Ports

Courtesy of CHRYSLER GROUP, LLC

1 - Line Pressure

2 - Forward Clutch Pressure

3 - Primary Pressure

4 - Torque Converter Apply Pressure

5 - Torque Converter Release Pressure

6 - Secondary Pressure

7 - Reverse Brake Pressure

NOTE:

Use (special tool #9873, Gauge Kit, Pressure Test) when testing for the pressures below.

	Fluid Pressure (Minimum - Maximum)	Fluid Pressure (Measurement Reference Value)		Remarks
	Reference Value - Metric/Standard	Measurement Condition	Reference Value - Metric/Standard	Remarks
Line pressure	0.5 - 6.0 Mpa (5.1- 61.2 kg/cm2)/73 - 870 psi	Idling	0.5 - 1.5 Mpa (5.1 - 15.3 kg/cm2)/73 - 217 psi
Forward clutch pressure	0.1 - 1.5 Mpa (1.0 - 15.3 kg/cm2)/14 - 217 psi	Idling (D position)	0.5 - 1.0 Mpa (5.1 - 10.2 kg/cm2)/73 - 145 psi	P, R and N positions: 0 Mpa (0 kg/cm2)
Primary pressure	0.1 - 6.0 Mpa (1.0 - 61.2 kg/cm2)/14 - 870 psi	Idling	0.1 - 1.5 Mpa (1.0 - 15.3 kg/cm2)/14 - 217 psi
Torque converter apply pressure	0.0 - 1.0 Mpa (0.0 - 10.2 kg/cm2)/0 - 145 psi	Lock-up ON:	0.0 - 0.2 Mpa (0.0 - 2.0 kg/cm2)/0 - 29 psi
Torque converter release pressure	0.0 - 1.0 Mpa (0.0 - 10.2 kg/cm2)/0 - 145 psi	Lock-up OFF:	0.0 - 0.2 Mpa (0.0 - 2.0 kg/cm2)/0 - 29 psi
Secondary Pressure	0.1 - 6.0 Mpa (1.0 - 61.2 kg/cm2)/14 - 870 psi	Idling	0.1 - 1.5 Mpa (1.0 -15.3 kg/cm2)/14 - 217 psi
Reverse brake pressure	0.1 - 1.5 Mpa (1.0 -15.3 kg/cm2)/14 - 217 psi	Idling (R position)	.5 - 1.0 Mpa (5.1 - 10.2 kg/cm2)/73 - 145 psi	Out of R position: 0 Mpa (0 kg/cm2)
