Cable, Gearshift Control: Removal: Removal

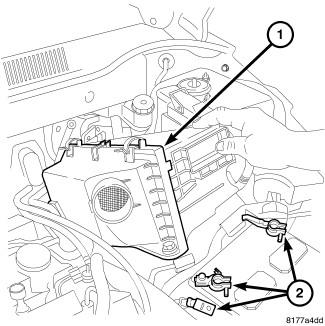

Fig 1: Air Cleaner Assembly

Courtesy of CHRYSLER GROUP, LLC

1. Remove the air box (1).
2. Disconnect the negative battery cable (2).

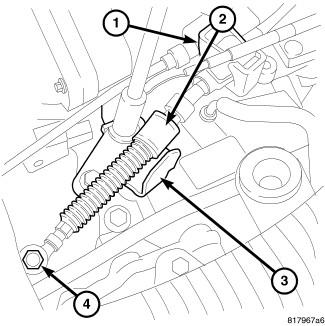

   Fig 2: Shifter Cable And Bracket

   Courtesy of CHRYSLER GROUP, LLC
3. Remove shifter cable (2) at transmission bracket (3).
4. Remove the nut (4) on the shifter cable to shift lever.

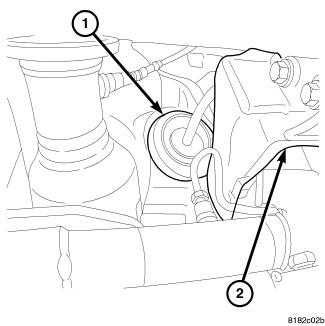

   Fig 3: Shifter Cable Grommet

   Courtesy of CHRYSLER GROUP, LLC
5. Remove the grommet (1) at the bulkhead.
6. Remove the shifter. Refer to SHIFTER, TRANSMISSION, REMOVAL .

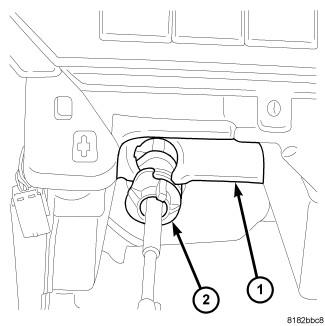

   Fig 4: Shifter Cable Clip At Floor

   Courtesy of CHRYSLER GROUP, LLC
7. Squeeze clip (2) at cable (1).

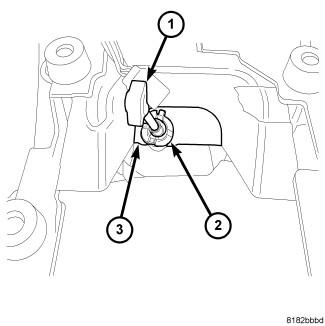

   Fig 5: Bracket At Bulkhead

   Courtesy of CHRYSLER GROUP, LLC
8. Pull cable from bracket (2) at bulkhead (1).
9. Loosen the hold down bolts at the air bag module. Refer to MODULE, OCCUPANT RESTRAINT CONTROLLER, REMOVAL .

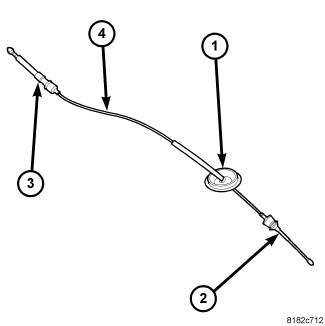

   Fig 6: Shifter Cable

   Courtesy of CHRYSLER GROUP, LLC
10. Pull the cable (1, 2) through the bulkhead into the engine compartment.
