Installation - Diesel Engine
Courtesy of CHRYSLER GROUP, LLC

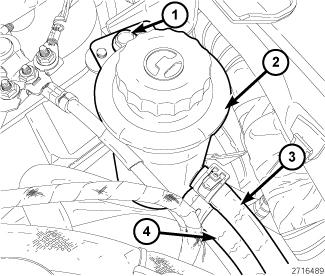

- Attach the reservoir to the bracket using the mounting screw (1). Tighten mounting screw (1) to 12 N.m (106 in. lbs.).
- Slide the pump supply hose (4) onto reservoir fitting. Expand hose clamp and slide it over hose on reservoir fitting. Secure clamp once it is past bead formed into fluid reservoir fitting.
- Slide cooler return hose (3) onto reservoir fitting. Expand hose clamp and slide it over hose on reservoir fitting. Secure clamp once it is past bead formed into fluid reservoir fitting.
- Fill and bleed the power steering system. Refer to STANDARD PROCEDURE .
- Check for leaks.
