Installation - Diesel Engine
Courtesy of CHRYSLER GROUP, LLC

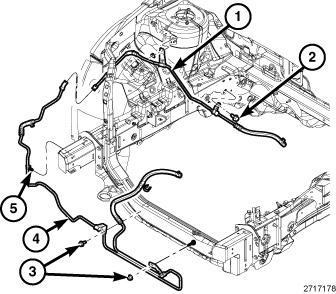

- Install the power steering fluid cooler line (4) to the lower front radiator crossmember. Tighten the fasteners (3) to 8 N-m (70.81 in. lbs.)
- Connect the power steering fluid cooler line (4) to the fluid return line (1).
- Install the clip (5) that attaches the power steering cooler line to the right frame rail.
- Install the right headlamp unit.
- Install the front fascia. Refer to FASCIA, FRONT, INSTALLATION
.
- Install the belly pan. Refer to BELLY PAN, INSTALLATION
.
Courtesy of CHRYSLER GROUP, LLC
- Slide the hose (2) from the power steering reservoir over the power steering cooler line. Expand the hose clamp (3) and slide it over the cooler line to secure it to the hose.
- Fill and bleed the power steering system. Refer to STANDARD PROCEDURE .
- Check for leaks.
