Child Seat Anchor: Installation: Installation
To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar® Parts Catalog.
The following procedure is for servicing the second row right inboard child restraint lower anchor and bracket. The second row right outboard and both left lower anchors are integral to their respective seat back hinge brackets. Refer to ASSEMBLY .

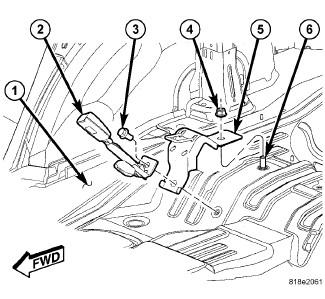

- Position the child anchor bracket (5) under the second row seat back and engage it over the stud (6) on the rear floor panel (1).
- Install and tighten the nut that secures the bracket to the stud. Tighten the nut to 80 N.m (59 ft. lbs.).
- Reinstall the second row right and center anchor buckle unit (2) onto the rear floor panel. Refer to BUCKLE, SEAT BELT, INSTALLATION .
