U0121-Lost Communication With Anti-Lock Brake Module: Notes

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

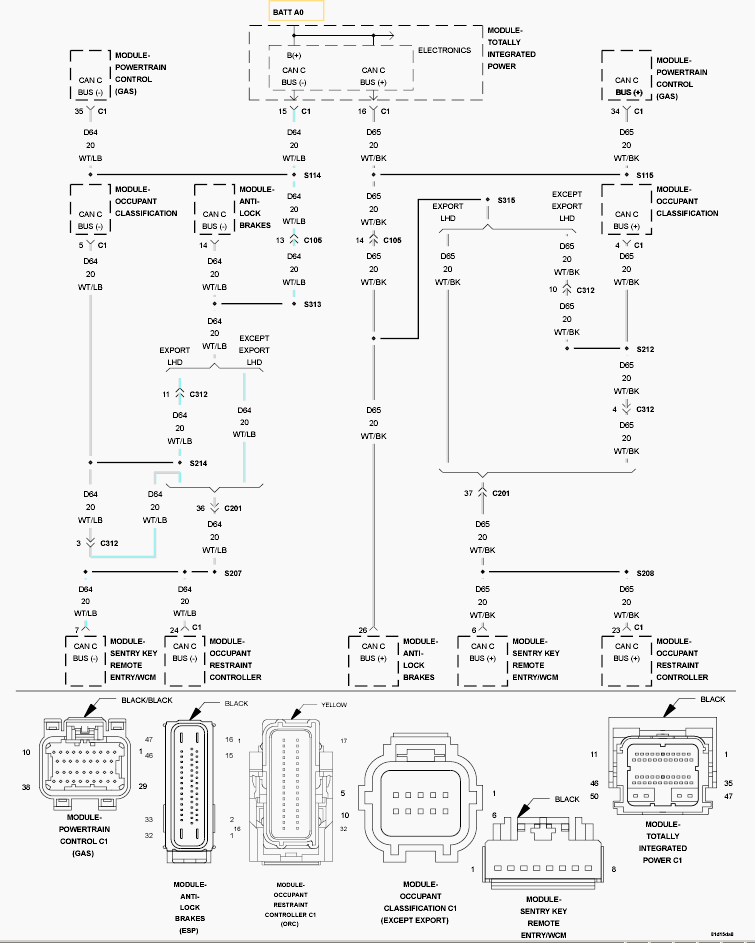

Fig 1: CHECKING LOST COMMUNICATION WITH ANTI-LOCK BRAKE MODULE
GC0102076Courtesy of CHRYSLER LLC
