Diagnostic Test

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR RELATED DTCS
1. Using the scan tool, read TIPM DTCs.
  Are there any TIPM TCM Power Control Circuit DTCs present also?

  Yes
  - Perform the appropriate diagnostic procedure. Refer to DIAGNOSTIC CODE INDEX .
  No
  - Go to step 2
CHECK FOR LOSS OF PRIME DTC
1. Using the scan tool, check for other Transmission DTCs.
  Is the DTC P0944 present also?

  Yes
  - Perform the appropriate diagnostic procedure.
  No
  - Go to step 3
CHECK TO SEE IF P0841 IS CURRENT
1. Using the scan tool, view DTCs.
  Is the status active for this DTC or is the Starts Since Set counter 2 or less?

  Yes
  - Go to step 4
  No
  - Go to step 8
PCM AND WIRING
1. Turn the ignition off to the lock position.
2. Remove the Starter Solenoid Relay from the TIPM.
  CAUTION: Removal of the Starter Solenoid Relay from the TIPM will prevent the vehicle from being started in gear.

  WARNING: The Starter Solenoid Relay must be removed from the TIPM. Failure to do so can result in possible serious or fatal injury.
3. Install the Transmission Simulator 8333A and the Electronic Transmission Adapter kit.
4. Ignition on, engine not running.
5. With the Transmission Simulator, turn the Pressure Switch selector to L/R.
6. Using the scan tool, monitor the L/R Pressure Switch state while pressing the Pressure Switch Test button on the Transmission Simulator.
  Did the L/R Pressure Switch state change?

  Yes
  - Replace the Transmission Solenoid/Pressure Switch Assembly in accordance with the Service Information.
  - Perform the 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go To 5

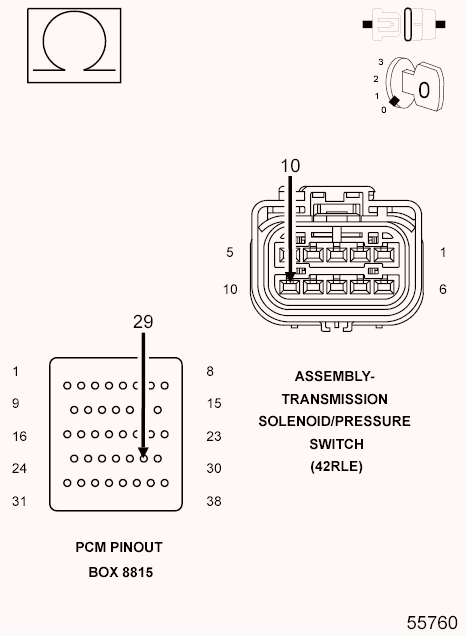

(T50) L/R PRESSURE SIGNAL CIRCUIT OPEN

Fig 1: CHECKING PRESSURE SIGNAL CIRCUIT FOR OPEN
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the PCM C4 harness connector.
3. Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
  CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box 8815 to perform diagnosis.
4. Measure the resistance of the (T50) L/R Pressure Signal circuit between the Transmission Solenoid/Pressure Switch Assembly harness connector and the appropriate terminal of the PCM Pinout Box 8815.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the (T50) L/R Pressure Signal circuit for an open.
  - Perform the 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go To 6

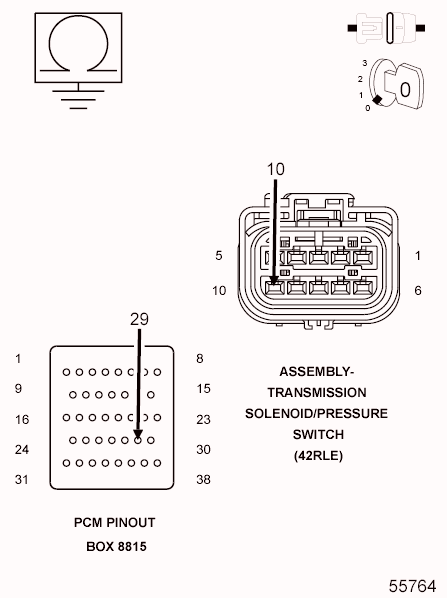

(T50) L/R PRESSURE SIGNAL CIRCUIT SHORT TO GROUND

Fig 2: CHECKING PRESSURE SIGNAL CIRCUIT FOR SHORT TO GROUND
Courtesy of CHRYSLER LLC
1. Measure the resistance between ground and the (T50) L/R Pressure Signal circuit.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the (T50) L/R Pressure Signal circuit for a short to ground.
  - Perform the 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 7
(T50) L/R PRESSURE SIGNAL CIRCUIT SHORT TO VOLTAGE

Fig 3: CHECKING PRESSURE SIGNAL CIRCUIT FOR SHORT TO VOLTAGE
Courtesy of CHRYSLER LLC
1. Ignition on, engine not running.
2. With the scan tool under TIPM, actuate the Transmission.
3. Measure the voltage of the (T50) L/R Pressure Signal circuit.
  Is the voltage above 0.5 of a Volt?

  Yes
  - Repair the (T50) L/R Pressure Signal circuit for a short to voltage.
  - Perform the 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace and program the PCM in accordance with the Service Information. Using the scan tool, perform Quick Learn.
  - Perform the 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
CHECK THE WIRING AND CONNECTORS
1. The conditions necessary to set the DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
3. Wiggle the wires while checking for shorted and open circuits.
4. Using the scan tool, check the Event Data to help identify the conditions in which the DTC was set.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Test Complete.
