Diagnostic Test

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR ACTIVE DTC
1. With the scan tool, read the active DTCs.
2. Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per cycle.
3. Attempt to make a phone call with the system.
4. With the scan tool, read the active DTCs.
  Does the scan tool display this DTC as active?

  Yes
  - Go To 2.
  No
  - If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
INSIDE REARVIEW MIRROR

Fig 1: Rearview Mirror Connector End View
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Rearview Mirror harness connector.
3. Turn the ignition on.
4. With the scan tool, read the active DTCs.
  Does the scan tool display this DTC as active?

  Yes
  - Go To 3.
  No
  - Replace the Rearview Mirror in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
(X722) MICROPHONE CIRCUITS SHORTED TO VOLTAGE

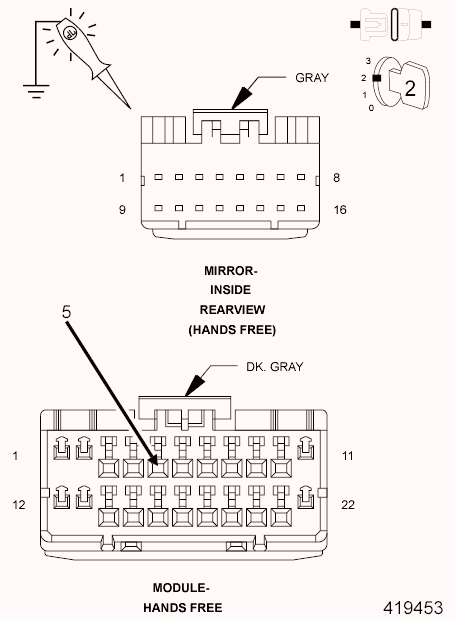

Fig 2: Checking Microphone Circuits For Short To Voltage
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Hands Free Module harness connector.
3. Turn the ignition on.
4. Measure the voltage of the (X722) Microphone circuit.
  Is the voltage above 1.0 volt?

  Yes
  - Repair the (X722) Microphone circuit for a short to voltage.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 4.

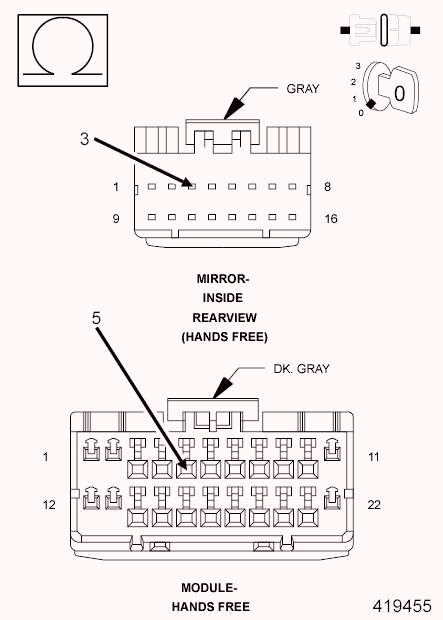

(X722) MICROPHONE 2 IN (+) CIRCUIT OPEN

Fig 3: Checking Microphone 2 In (+) Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Measure the resistance of the (X722) Microphone 2 IN (+) circuit between the HFM connector and the inside rearview mirror connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Replace the Hands Free Module in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Repair the (X722) Microphone 2 IN (+) circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
