Nozzle, Washer: Installation: Front
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

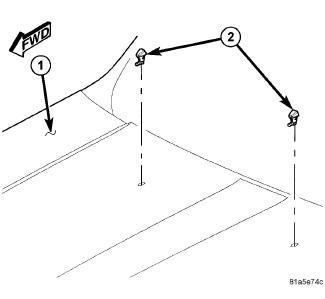

- Position the front washer nozzle (2) to the mounting hole on the outside of the hood panel (1).
- Align the anti-rotation tab of the nozzle with the anti-rotation notch in the mounting hole.
- Using hand pressure, push firmly and evenly on the top of the nozzle until the integral latches lock into place on the underside of the hood.
- From the underside of the hood, reconnect the washer hose to the barbed nipple of the nozzle.
- Reinstall the push-in retainers that secure the hood silencer pad to the inner hood reinforcement.
