Module, Glow Plug: Removal: Removal

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

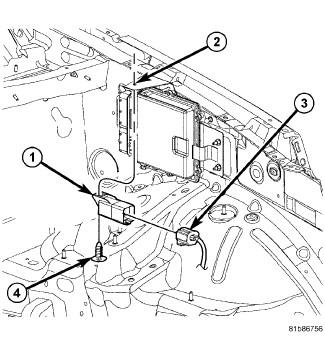

Fig 1: Identifying Glow Plug Relay (Module), ECM Mounting Bracket, Electrical Connector & Pin
GC0085960Courtesy of CHRYSLER GROUP, LLC
NOTE:

The glow plug module (1) is located in the engine compartment. It is attached to the Powertrain Control Module (PCM) mounting bracket (2).

  1. Remove pin (4).
  2. Disconnect the glow plug module wire harness connector (3) and remove glow plug module (1).
