ACTUATOR, Mode Door: Description: Description

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

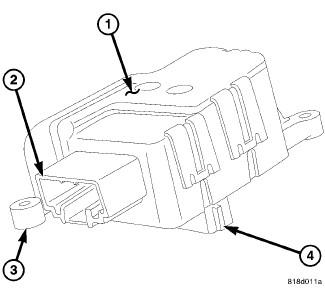

Fig 1: Blend Door Actuator

Courtesy of CHRYSLER LLC

The heating-A/C system uses a reversible, 12-volt direct current (DC) servo motor which mechanically positions the mode-air door. The mode door actuator (1) is located on the driver side of the HVAC housing.

The mode door actuator is interchangeable with the actuators for the blend-air door and the recirculation-air door. Each actuator is contained within a black molded plastic housing with an integral wire connector receptacle (2) and integral mounting tabs (3) that allow the actuator to be secured to the HVAC housing. The mode door actuator output shaft (4) is connected to the linkage that drives the mode-air door. The mode door actuator does not require mechanical indexing to the mode-air doors, as it is electronically calibrated by the A/C-heater control.
