Diagnostic Test

WARNING: This page is about a different car, the 2012 Jeep Patriot and 2012 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

TEST FOR INTERMITTENT CONDITION
NOTE:
Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.
1. Turn the ignition on.
  NOTE:
  Make sure the Ignition Off Draw (IOD) fuse is installed and battery voltage is between 10.0 and 16.0 volts.
2. With the scan tool, read the module status.
  NOTE:
  Check the TIPM for any active CAN hardware DTCs, perform DTC before proceeding.

  Does the scan tool indicate that the module is active on the bus?

  Yes
  - The no response condition is not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
  No
  - Go To 2.
CHECK THE (A931) FUSED B(+) CIRCUIT FOR AN OPEN OR SHORT

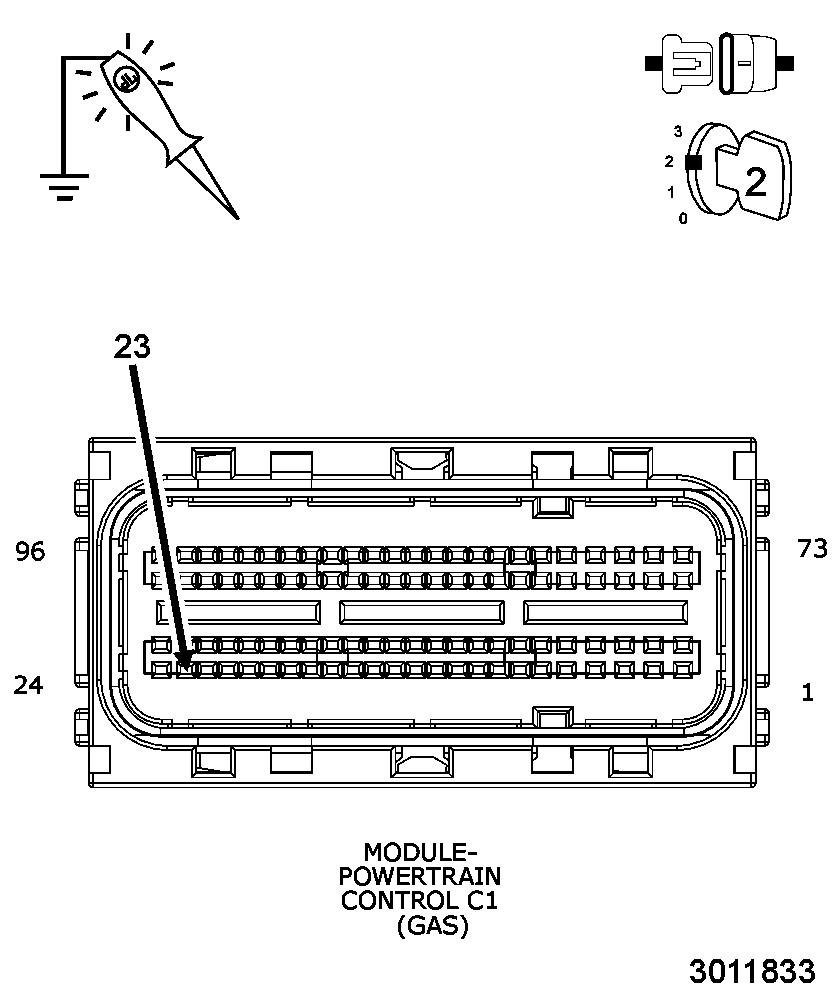

Fig 1: Checking Fused B(+) Circuit For An Open Or Short
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the PCM C1 harness connector.
3. Using a 12-volt test light connected to ground, check the (A931) Fused B(+) circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 3.
  No
  - Repair the open or short in the (A931) Fused B(+) circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to 2.0L & 2.4L - POWERTRAIN VERIFICATION TEST .
CHECK THE (Z932) GROUND CIRCUIT FOR AN OPEN

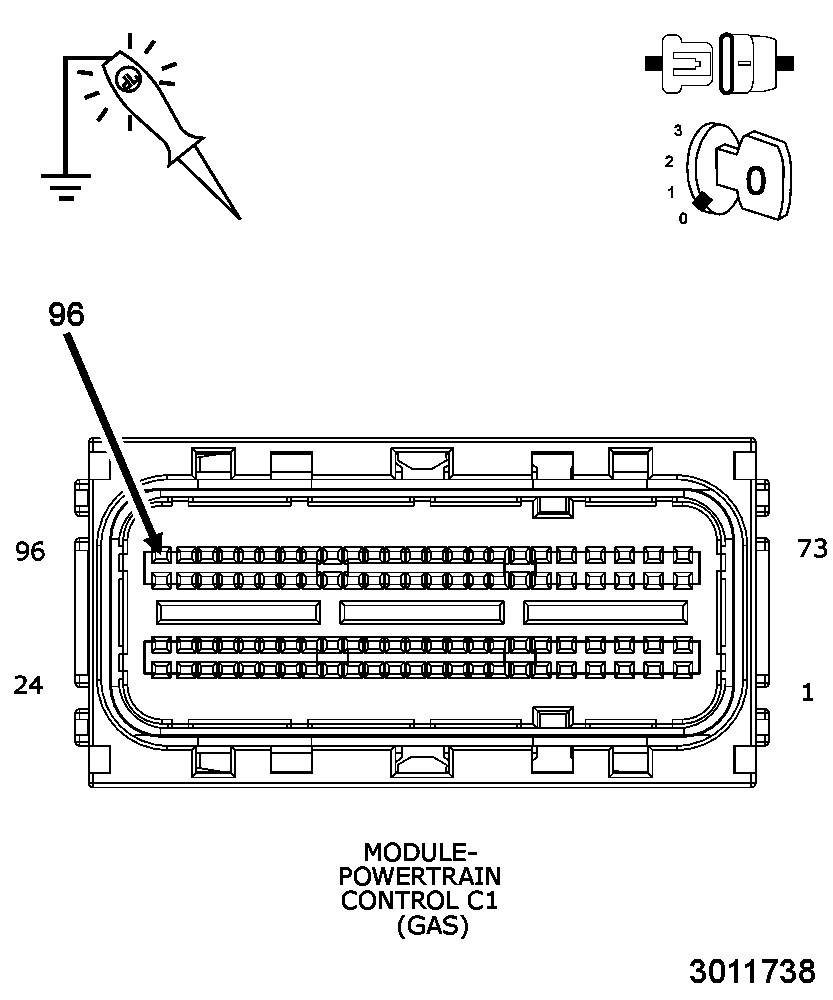

Fig 2: Checking Ground Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Using a 12-volt test light connected to 12-volts, check the (Z932) Ground circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 4.
  No
  - Repair the open in the (Z932) Ground circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to 2.0L & 2.4L - POWERTRAIN VERIFICATION TEST .
CHECK THE (Z902) GROUND CIRCUIT FOR AN OPEN
1. Disconnect the PCM C3 harness connector.
2. Using a 12-volt test light connected to 12-volts, check the (Z902) Ground circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 5.
  No
  - Repair the open in the (Z902) Ground circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to 2.0L & 2.4L - POWERTRAIN VERIFICATION TEST .
CHECK THE (F202) IGNITION SWITCH OUTPUT CIRCUIT FOR AN OPEN OR SHORT

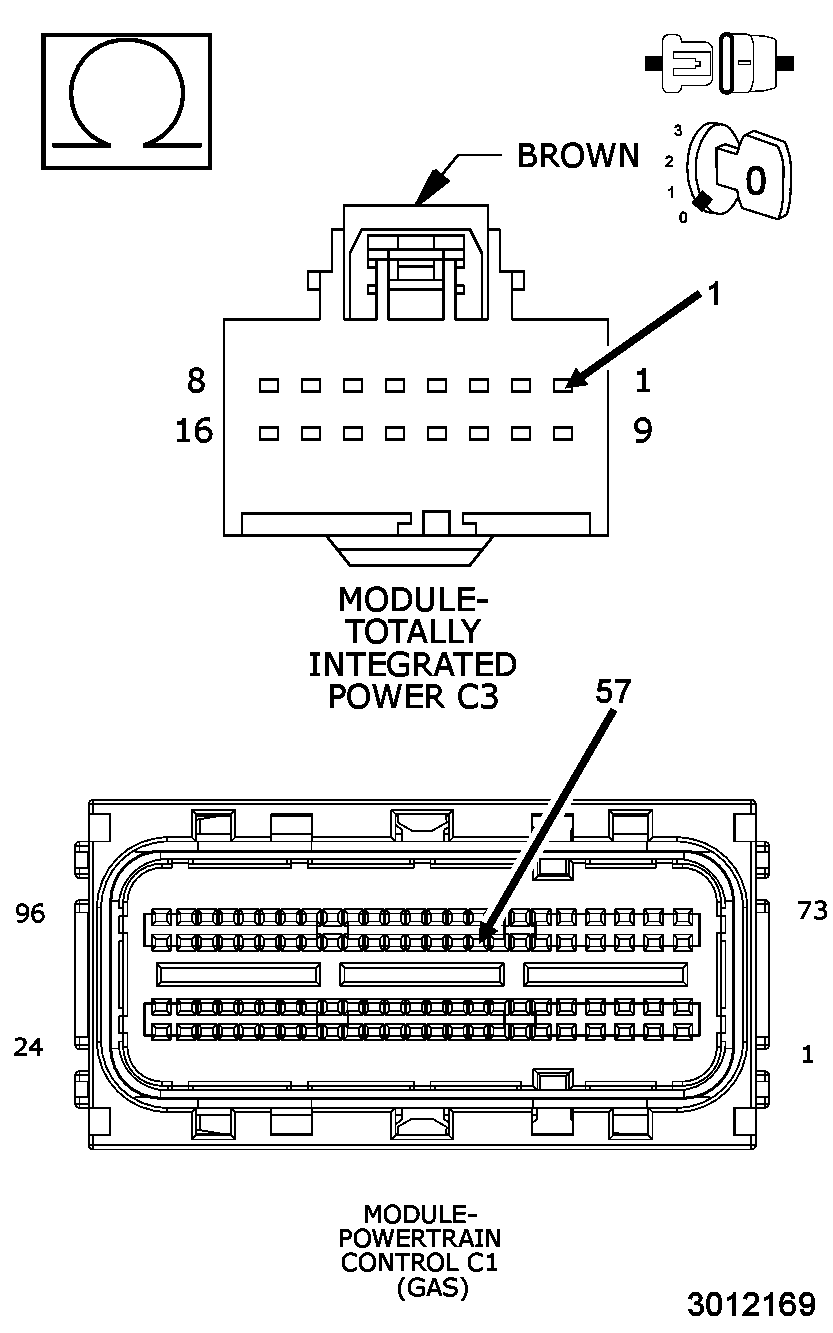

Fig 3: Checking Run/Start Relay Output Circuit For An Open Or Short
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition on.
2. Using a 12-volt test light connected to ground, check the (F202) Ignition Switch Output circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 6.
  No
  - Repair the open or short in the (F202) Ignition Switch Output circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to 2.0L & 2.4L - POWERTRAIN VERIFICATION TEST .
CHECK THE (F342) FUSED MAIN RELAY OUTPUT CIRCUIT FOR AN OPEN OR SHORT

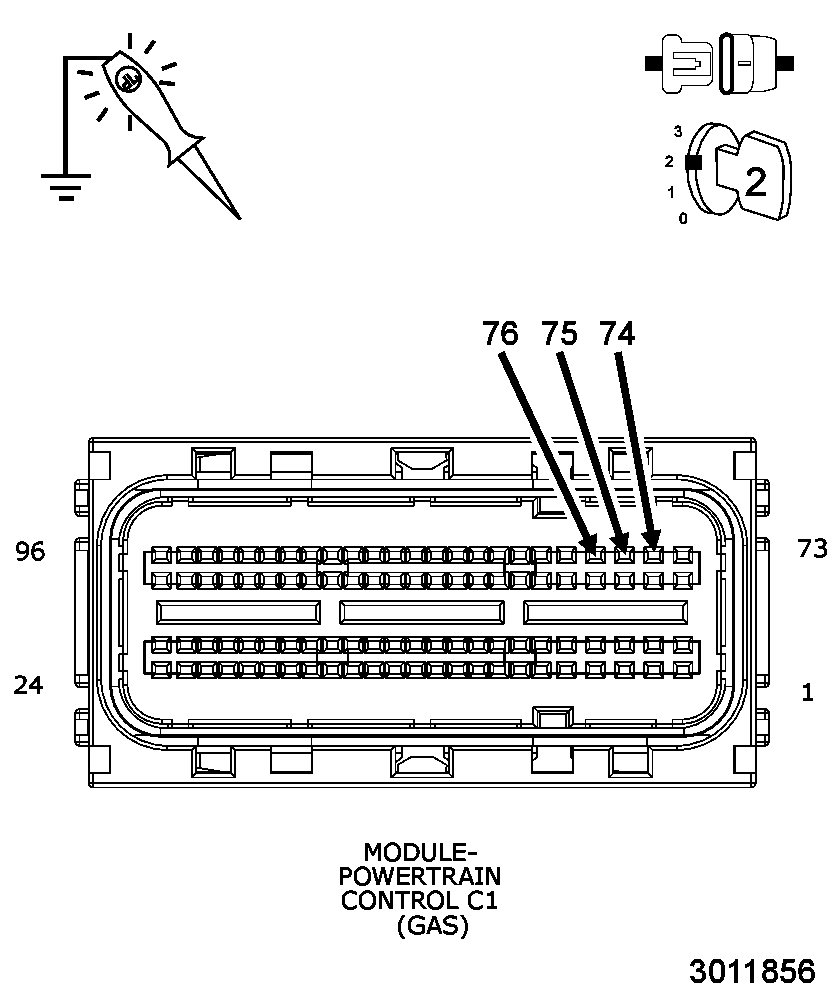

Fig 4: Checking Fused ASD Relay Output Circuits For An Open Or Short
Courtesy of CHRYSLER GROUP, LLC
1. Remove the ASD/Main Relay.
2. Connect a fused jumper wire between terminals 30 and 87.
3. Using a 12-volt test light connected to ground, check the (F342) Fused Main Relay Output circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 7.
  No
  - Repair the open or short in the (F342) Fused Main Relay Output circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to 2.0L & 2.4L - POWERTRAIN VERIFICATION TEST .
CHECK THE (D65) CAN C BUS (+) CIRCUIT FOR AN OPEN

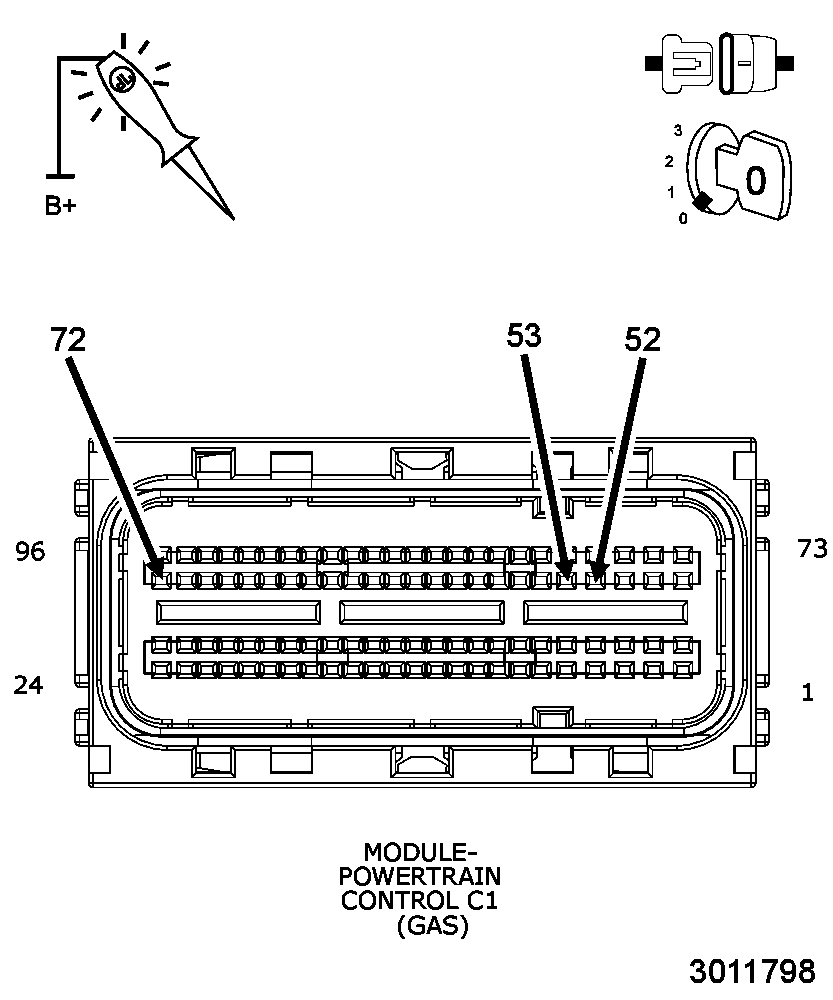

Fig 5: Checking Can C Bus (+) Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the TIPM C3 harness connector.
3. Measure the resistance of the (D65) CAN C Bus (+) circuit between the TIPM C3 harness connector and the PCM C1 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 8.
  No
  - Repair the open in the (D65) CAN C Bus (+) circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to 2.0L & 2.4L - POWERTRAIN VERIFICATION TEST .
CHECK THE (D64) CAN C BUS (-) CIRCUIT FOR AN OPEN

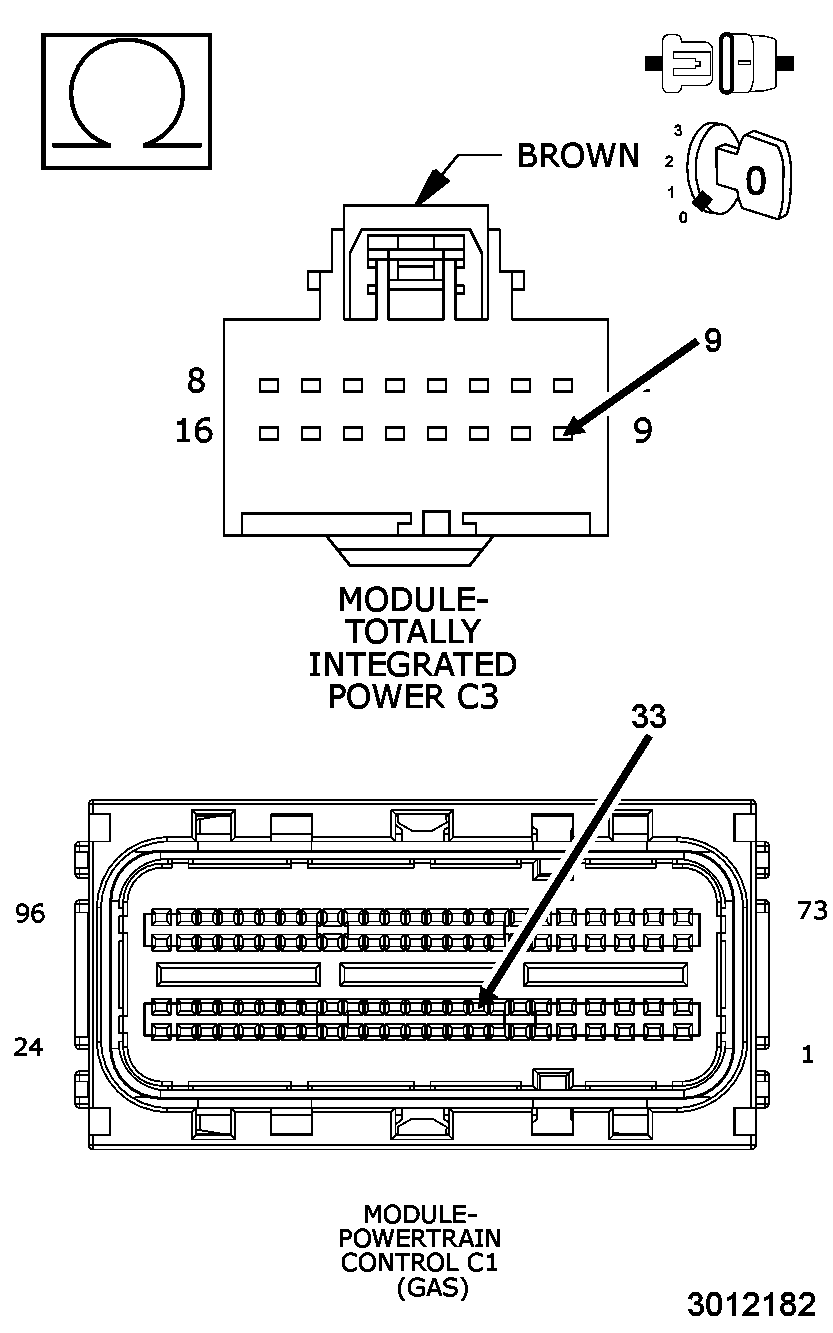

Fig 6: Checking Can C Bus (-) Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance of the (D64) CAN C Bus (-) circuit between the TIPM C3 harness connector and the PCM C1 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace and program the Powertrain Control Module in accordance with the Service Information.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to 2.0L & 2.4L - POWERTRAIN VERIFICATION TEST .
  No
  - Repair the open in the (D64) CAN C Bus (-) circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to 2.0L & 2.4L - POWERTRAIN VERIFICATION TEST .
