Diagnosis And Testing - Rear Window Motor Inoperative: Notes

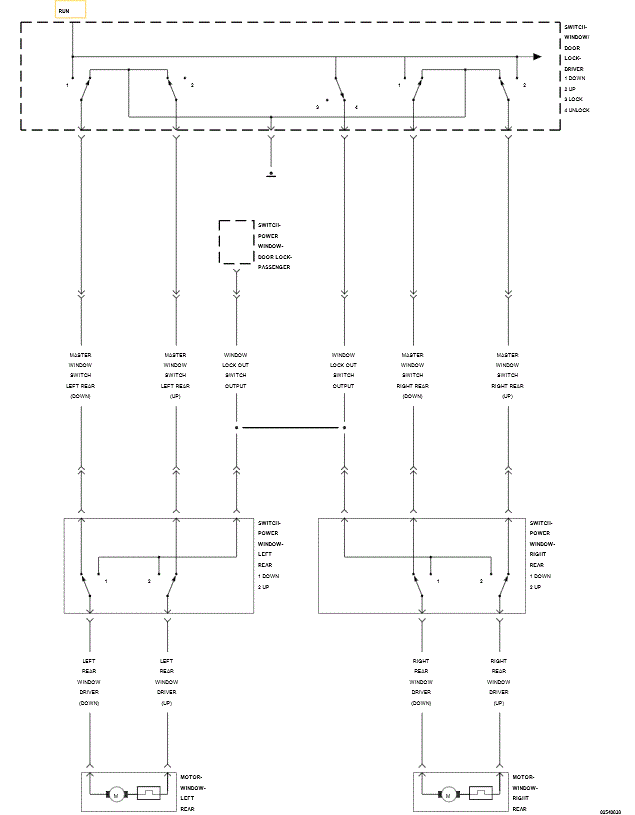

Fig 1: Power Window System Circuit Schematic
GC0098309Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

NOTE:

The graphics in this test show the Left Rear connectors, the Right side connectors are similar, refer to the Wiring Information for the connector pinouts.
