Fuel Tank Skid Plate: Installation: Installation

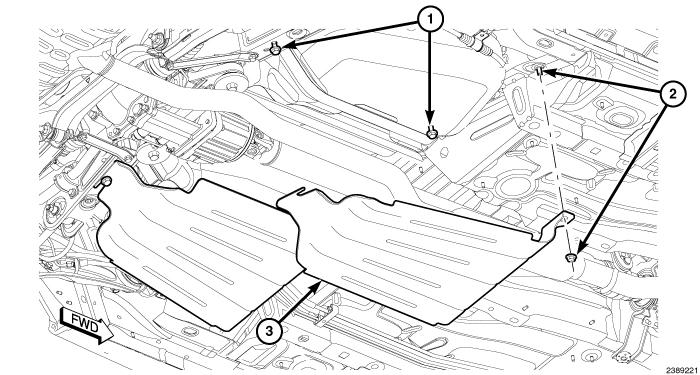

Fig 1: Removal/Installation Skid Plate & Nuts And Bolts
GC0098863Courtesy of CHRYSLER GROUP, LLC
NOTE:

Right side plate shown in the illustration, left side plate is similar.

  1. Hand start the bolts (1).
  2. Position the skid plate over the bolts (1) and stud (2).
  3. Tighten the bolts (1) to 30 N.m (22 ft. lbs.).
  4. Tighten the nut (2) to 25 N.m (18 ft. lbs.).
