Washer Nozzle: Installation: Front

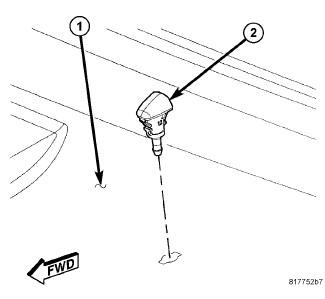

Fig 1: Front Washer Nozzle & Hood

Courtesy of CHRYSLER GROUP, LLC

Position the front washer nozzle (2) to the mounting hole on the outside of the hood panel (1).
Align the anti-rotation tab of the nozzle with the anti-rotation notch in the mounting hole.
Using hand pressure, push firmly and evenly on the top of the nozzle until the integral latches lock into place on the underside of the hood.

Fig 2: Molded Rubber Tee & Molded Rubber Elbow
Courtesy of CHRYSLER GROUP, LLC
From the underside of the hood, reconnect the washer hose connector (2) to the barbed nipple of the nozzle.
Reinstall the rear edge of the hood silencer pad to the clips on the inner hood reinforcement (1).
