Module, Compass: Description: Description

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

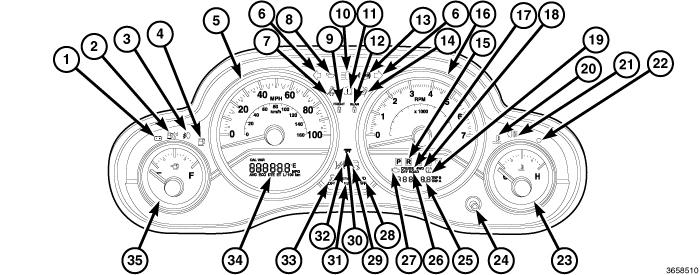

Fig 1: Instrument Cluster

Courtesy of CHRYSLER GROUP, LLC

The Remote Compass Module (RCM) features two driver-interactive displays. The display located in the lower left part of the instrument cluster (34) at the bottom of the speedometer (5) displays the compass/temperature and trip computer functions. The display located in the lower right part of the instrument cluster (25) at the bottom of the tachometer (16) displays the odometer related functions. This system conveniently allows the driver to select a variety of useful information by depressing the switch buttons of the Electronic Vehicle Information Center (EVIC) switch pod located on the left horizontal spoke of the steering wheel or the odometer and trip odometer select and reset button (24) on the right side of the instrument cluster. Once a resettable feature is displayed, pressing and holding the appropriate reset button will reset the resettable feature. Reset will only occur if a resettable function is currently being displayed. The RCM displays information related to the following:

Compass display
Outside temperature display
Trip computer functions

The RCM system is comprised of several different components. Those components are:

Instrument Cluster (also known as the Cab Compartment Node/CCN)
Odometer and trip odometer select and reset button
EVIC switch module
Ambient Temperature Sensor
Remote Compass Module (RCM)
Controller Area Network (CAN) data bus
Local Interface Network (LIN) data bus

The RCM display as well as the odometer and trip odometer select and reset button are part of the instrument cluster assembly and cannot be serviced as separate components. If the display or button are damaged or ineffective, the complete instrument cluster assembly must be replaced. Refer to REMOVAL .
