Switch, Clutch Starter Interlock: Installation: Installation

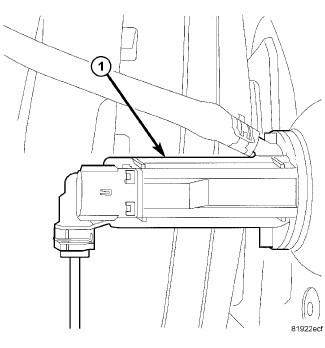

Fig 1: Identifying Pedal Position Switch

Courtesy of CHRYSLER GROUP, LLC

1. Snap pedal position switch (1) on clutch master cylinder.

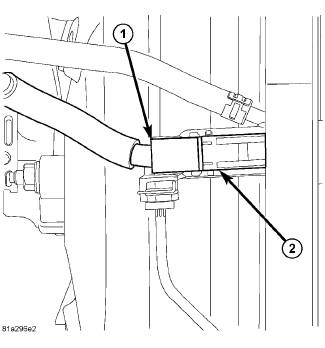

   Fig 2: Clutch Switch Harness

   Courtesy of CHRYSLER GROUP, LLC
2. Connect harness (1) to clutch pedal position switch (2).
