Sensor, Intake Air Pressure: Installation: Installation

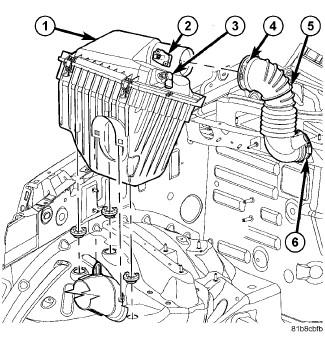

Fig 1: Removing/Installing Intake Air Pressure & Mass Air Flow Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Check condition of sensor O-ring.
2. Position Inlet Pressure Sensor (3) into top of air cleaner cover (1) with a slight twisting action.
3. Install mounting screws.
4. Install Inlet Pressure Sensor electrical connector.
