Sensor, Air Temperature, Intake: Removal: Removal

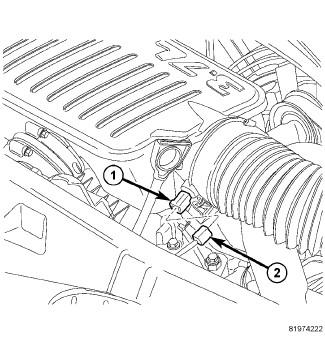

Fig 1: Identifying Intake Manifold Air Temperature (IAT) Sensor & Electrical Connector

Courtesy of CHRYSLER GROUP, LLC

The intake manifold air temperature (IAT) sensor (1) is installed into the rubber air intake tube near the throttle body.

1. Disconnect electrical connector (2) from IAT sensor.
2. Clean dirt from IAT sensor base.
3. Pull out on IAT sensor (1) while rotating for removal.
4. Check condition of sensor O-ring.
