Pressure Hose Assembly - Diesel

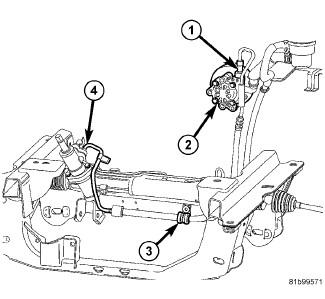

Fig 1: Pressure Line, Pump, Bracket Bolts & Gear

GC0086138

Courtesy of CHRYSLER GROUP, LLC

Install the pressure hose (1) to the vehicle.
Install the pressure hose mounting bracket bolts (3) to the frame.
Install the pressure hose at the gear (4).
Install the pressure line (1) at the pump (2).
Install the airbox.
Refill the power steering fluid.
Bleed the power steering system. Refer to STANDARD PROCEDURE .
Check for leaks.
