Switch, Ignition: Description: Description

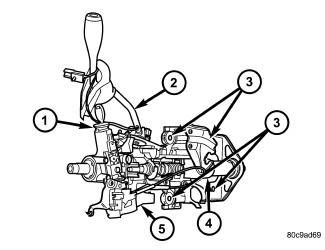

Fig 1: Ignition Switch & Steering Column

Courtesy of CHRYSLER GROUP, LLC

1 - KEY CYLINDER

2 - GEAR SHIFT LEVER

3 - MOUNTING HOLES

4 - STEERING COLUMN

5 - IGNITION SWITCH

The ignition switch (5) is located on the steering column (4). It is used as the main on/off switching device for most electrical components. The mechanical key cylinder is used to engage/disengage the electrical ignition switch.
