Sensor, Knock: Removal: 3.7L

NOTE:
  • The left sensor is identified by an identification tag (LEFT) (2). It is also identified by a larger bolt head. The Powertrain Control Module (PCM) must have and know the correct sensor left/right positions. Do not mix the sensor locations.
  • The two knock sensors (1) are bolted into the cylinder block under the intake manifold. The two sensors share a common wiring harness using one electrical connector (3). Because of this, they must be replaced as a pair.

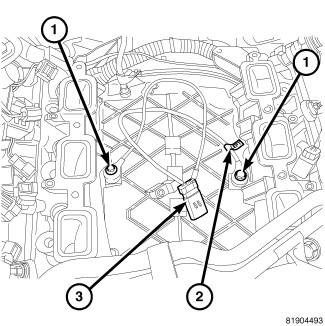

Fig 1: Knock Sensor & Identification Tag
GC0082814Courtesy of CHRYSLER GROUP, LLC
  1. Remove intake manifold. Refer to REMOVAL
  2. Disconnect knock sensor dual pigtail harness from engine wiring harness. This connection is made near rear of engine.
  3. Remove both sensor mounting bolts. Note foam strip on bolt threads. This foam is used only to retain the bolts to sensors for plant assembly. It is not used as a sealant. Do not apply any adhesive, sealant or thread locking compound to these bolts.
  4. Remove sensors from engine.
