Pump, Water: Removal: 2.8L

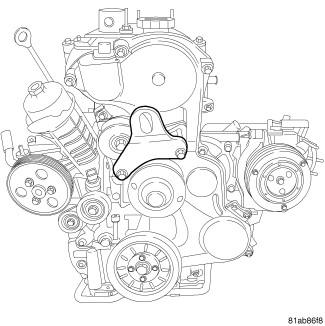

Fig 1: Front Lifting Bracket

Courtesy of CHRYSLER GROUP, LLC

Disconnect negative battery cable.
Remove the radiator fan. Refer to FAN, COOLING, ELECTRIC, REMOVAL .
Drain cooling system. Refer to STANDARD PROCEDURE .
Remove the lifting bracket (1).

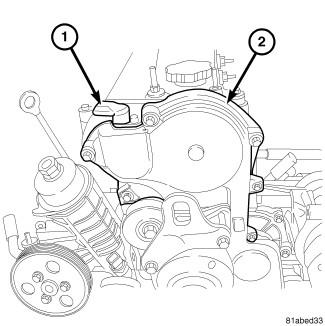

Fig 2: Identifying Upper Front Cover & Lifting Bracket
Courtesy of CHRYSLER GROUP, LLC
Remove the upper front cover (2).

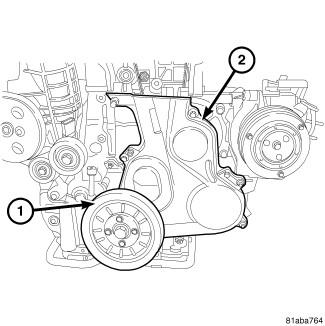

Fig 3: Identifying Outer Front Cover & Crankshaft Damper
Courtesy of CHRYSLER GROUP, LLC
Remove the crankshaft damper (1) and lower front cover (2).

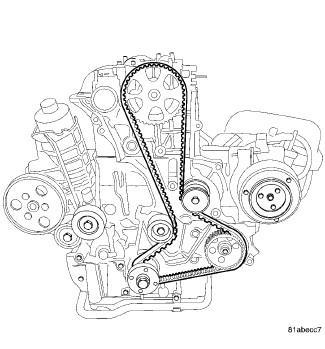

Fig 4: Removing/Installing Timing Belt
Courtesy of CHRYSLER GROUP, LLC
Remove the timing belt.

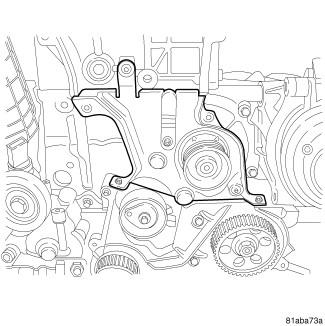

Fig 5: Removing/Installing Inner Front Cover
Courtesy of CHRYSLER GROUP, LLC
Remove the inner front cover.

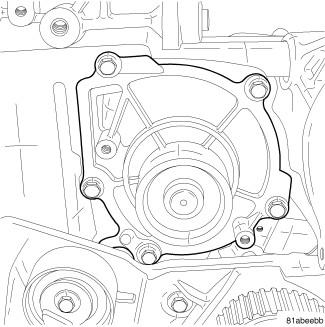

Fig 6: Identifying Water Pump
Courtesy of CHRYSLER GROUP, LLC
Remove the water pump retaining bolts and the pump assembly.
