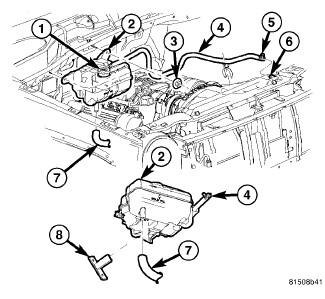

Pressure System
| 1 - PRESSURE CAP |
| 2 - COOLANT BOTTLE |
| 3 - MOUNTING NUTS |
| 4 - COOLANT BOTTLE TO RADIATOR HOSE |
| 5 - CLAMP |
| 6 - RADIATOR |
| 7 - LOWER HOSE |
| 8 - MOUNTING BRACKET |
- Position pressure bottle on mounting bracket.
- Install mounting nuts. Tighten nuts to 8.5 N.m (75 in. lbs.).
- Install lower hose at coolant bottle.
- Install radiator to coolant bottle hose at coolant bottle.
- Fill cooling system. Refer to STANDARD PROCEDURE .
